Text from PDF Page: 030

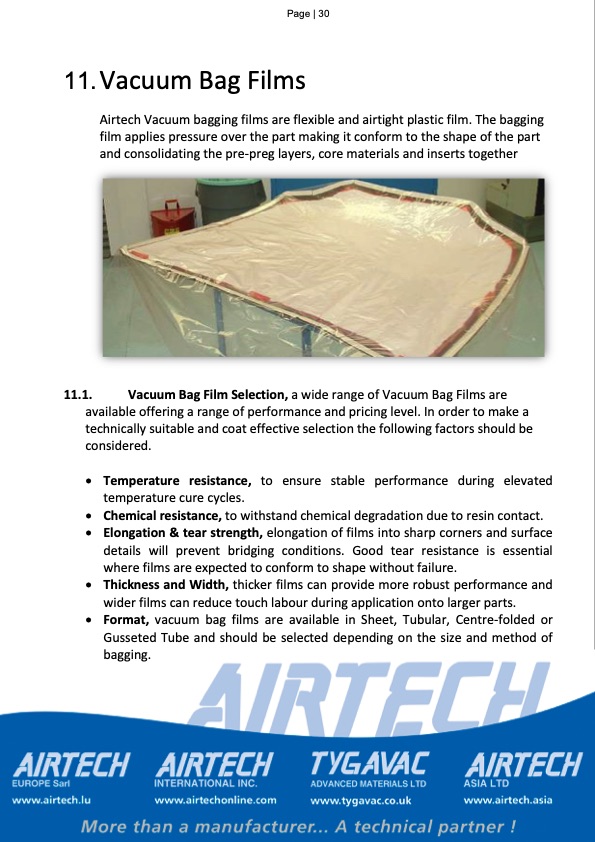

Page | 30 Vacuum Bagging for Resin Infusion 11.Vacuum Bag Films Airtech Vacuum bagging films are flexible and airtight plastic film. The bagging film applies pressure over the part making it conform to the shape of the part and consolidating the pre-preg layers, core materials and inserts together 11.1. Vacuum Bag Film Selection, a wide range of Vacuum Bag Films are available offering a range of performance and pricing level. In order to make a technically suitable and coat effective selection the following factors should be considered. • Temperature resistance, to ensure stable performance during elevated temperature cure cycles. • Chemical resistance, to withstand chemical degradation due to resin contact. • Elongation & tear strength, elongation of films into sharp corners and surface details will prevent bridging conditions. Good tear resistance is essential where films are expected to conform to shape without failure. • Thickness and Width, thicker films can provide more robust performance and wider films can reduce touch labour during application onto larger parts. • Format, vacuum bag films are available in Sheet, Tubular, Centre-folded or Gusseted Tube and should be selected depending on the size and method of bagging.PDF Image | Vacuum Bagging for Resin Infusion
