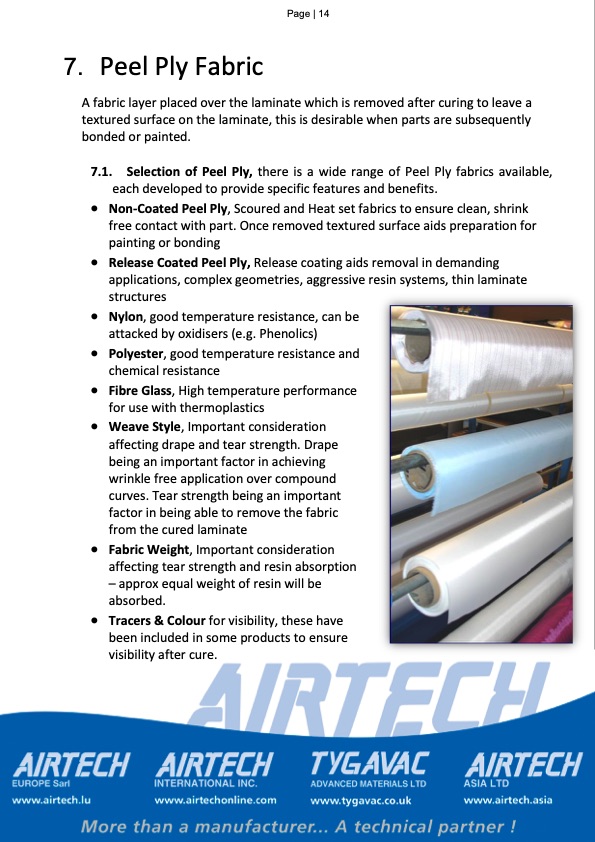

7. Peel Ply Fabric Page | 14 Vacuum Bagging for Resin Infusion A fabric layer placed over the laminate which is removed after curing to leave a textured surface on the laminate, this is desirable when parts are subsequently bonded or painted. 7.1. Selection of Peel Ply, there is a wide range of Peel Ply fabrics available, each developed to provide specific features and benefits. • Non-Coated Peel Ply, Scoured and Heat set fabrics to ensure clean, shrink free contact with part. Once removed textured surface aids preparation for painting or bonding • Release Coated Peel Ply, Release coating aids removal in demanding applications, complex geometries, aggressive resin systems, thin laminate structures • Nylon, good temperature resistance, can be attacked by oxidisers (e.g. Phenolics) • Polyester, good temperature resistance and chemical resistance • Fibre Glass, High temperature performance for use with thermoplastics • Weave Style, Important consideration affecting drape and tear strength. Drape being an important factor in achieving wrinkle free application over compound curves. Tear strength being an important factor in being able to remove the fabric from the cured laminate • Fabric Weight, Important consideration affecting tear strength and resin absorption – approx equal weight of resin will be absorbed. • Tracers & Colour for visibility, these have been included in some products to ensure visibility after cure.PDF Image | Vacuum Bagging for Resin Infusion
