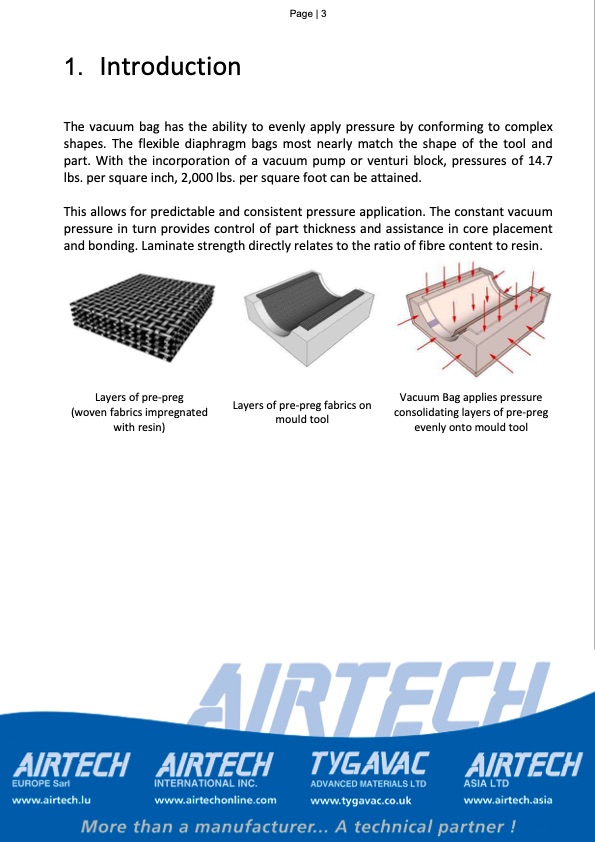

1. Introduction Page | 3 Vacuum Bagging for Resin Infusion The vacuum bag has the ability to evenly apply pressure by conforming to complex shapes. The flexible diaphragm bags most nearly match the shape of the tool and part. With the incorporation of a vacuum pump or venturi block, pressures of 14.7 lbs. per square inch, 2,000 lbs. per square foot can be attained. This allows for predictable and consistent pressure application. The constant vacuum pressure in turn provides control of part thickness and assistance in core placement and bonding. Laminate strength directly relates to the ratio of fibre content to resin. Layers of pre-preg (woven fabrics impregnated with resin) Layers of pre-preg fabrics on mould tool Vacuum Bag applies pressure consolidating layers of pre-preg evenly onto mould toolPDF Image | Vacuum Bagging for Resin Infusion
