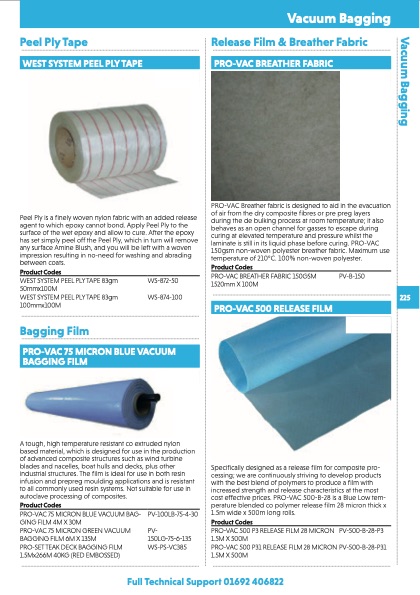

Peel Ply Tape WEST SYSTEM PEEL PLY TAPE Peel Ply is a finely woven nylon fabric with an added release agent to which epoxy cannot bond. Apply Peel Ply to the surface of the wet epoxy and allow to cure. After the epoxy has set simply peel off the Peel Ply, which in turn will remove any surface Amine Blush, and you will be left with a woven impression resulting in no-need for washing and abrading between coats. Release Film & Breather Fabric PRO-VAC BREATHER FABRIC PRO-VAC Breather fabric is designed to aid in the evacuation of air from the dry composite fibres or pre preg layers during the de bulking process at room temperature; it also behaves as an open channel for gasses to escape during curing at elevated temperature and pressure whilst the laminate is still in its liquid phase before curing. PRO-VAC 150gsm non-woven polyester breather fabric. Maximum use temperature of 210°C. 100% non-woven polyester. Product Codes WEST SYSTEM PEEL PLY TAPE 83gm 50mmx100M WEST SYSTEM PEEL PLY TAPE 83gm 100mmx100M Bagging Film WS-872-50 WS-874-100 Product Codes PRO-VAC BREATHER FABRIC 150GSM 1520mm X 100M PRO-VAC 500 RELEASE FILM PV-B-150 PRO-VAC 75 MICRON BLUE VACUUM BAGGING FILM A tough, high temperature resistant co extruded nylon based material, which is designed for use in the production of advanced composite structures such as wind turbine blades and nacelles, boat hulls and decks, plus other industrial structures. The film is ideal for use in both resin infusion and prepreg moulding applications and is resistant to all commonly used resin systems. Not suitable for use in autoclave processing of composites. Product Codes Specifically designed as a release film for composite pro- cessing; we are continuously striving to develop products with the best blend of polymers to produce a film with increased strength and release characteristics at the most cost effective prices. PRO-VAC 500-B-28 is a Blue Low tem- perature blended co polymer release film 28 micron thick x 1.5m wide x 500m long rolls. Product Codes PRO-VAC500P3RELEASEFILM28MICRON PV-500-B-28-P3 1.5M X 500M PRO-VAC 500 P31 RELEASE FILM 28 MICRON PV-500-B-28-P31 1.5M X 500M PRO-VAC 75 MICRON BLUE VACUUM BAG- GING FILM 4M X 30M PRO-VAC75MICRONGREENVACUUM BAGGING FILM 6M X 135M PRO-SET TEAK DECK BAGGING FILM 1.5Mx266M 40KG (RED EMBOSSED) PV-100LB-75-4-30 PV- 150LG-75-6-135 WS-PS-VC385 Full Technical Support 01692 406822 Vacuum Bagging 225 Vacuum BaggingPDF Image | Vacuum Bagging 224 228
