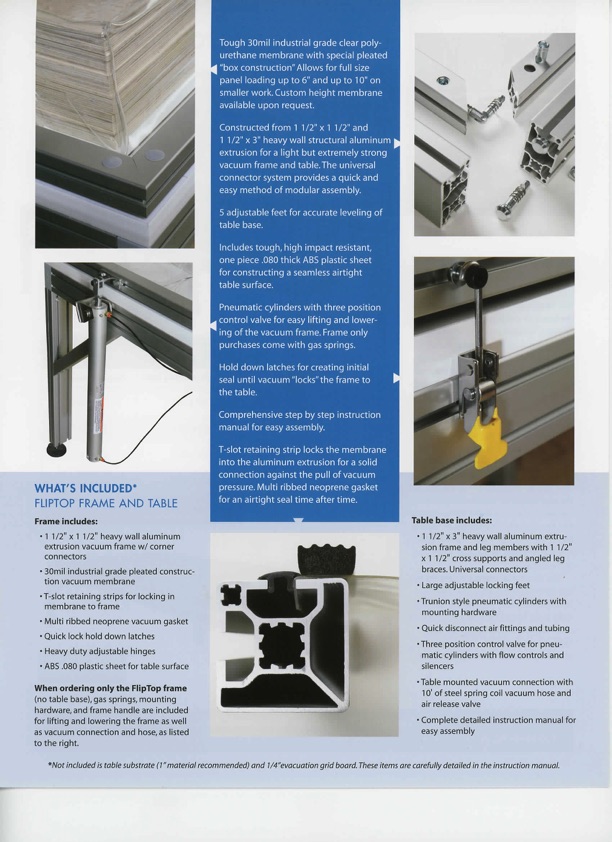

WHAT'S INCLUDED* FLIPTOP FRAME AND TABLE Frame includes: • 1 1/2" x 1 1/2" heavy wall aluminum extrusion vacuum frame w/ corner connectors • SOmil industrial grade pleated construc- tion vacuum membrane •T-slot retaining strips for locking in membrane to frame • Multi ribbed neoprene vacuum gasket • Quick lock hold down latches • Heavy duty adjustable hinges • ABS .080 plastic sheet for table surface When ordering only the FlipTop frame (no table base), gas springs,mounting hardware, and frame handle are included for liftingandloweringtheframe as well as vacuum connection and hose, as listed to the right. Table base includes: • 1 1/2" X 3" heavy wall aluminum extru- sion frame and leg members with 11/2" x 1 1/2" cross supports and angled leg braces. Universal connectors • Large adjustable locking feet •Trunion style pneumatic cylinders with mounting hardware •Quick disconnect airfittings andtubing •Three position control valve for pneu- matic cylinders with flow controls and silencers •Table mounted vacuum connection with 10' o f steel spring coil vacuum hose a n d air release valve •Complete detailed instructionmanual for easy assembly Tough 30mil industrial grade clear poly- urethane membrane with special pleated ^ "box construction" Allows forfull size ^ panel loading up to 6" and up to 10" on smaller work. Custom height membrane available upon request. Constructed from 1 l/2"x1 1/2"and 1 1/2" X 3" heavy wall structural aluminum p extrusion fora light butextremely strong vacuum frame a n d table.The universal connector system provides a quick a n d easy method of modular assembly. 5 adjustable feet foraccurate leveling of table base. Includes tough, high impact resistant, one piece .080 thick ABS plastic sheet for constructing a seamless airtight table surface. Pneumatic cylinders with three position control valve foreasy lifting and lower- ing o f the vacuum frame. Frame only purchases come with gas springs. Hold down latches forcreating initial seal until vacuum "locks" the frame t o ^ the table. Comprehensive step by step instruction manual foreasy assembly. T-stot retaining strip locks the membrane into thealuminum extrusionfora solid connection against the pull of vacuum pressure. Multi ribbed neoprene gasket for an airtightseal time after time. * Not included is table substrate (1" material recommended) and l/4"evacuation grid board.These items are carefully detailed in the instruction manual.
