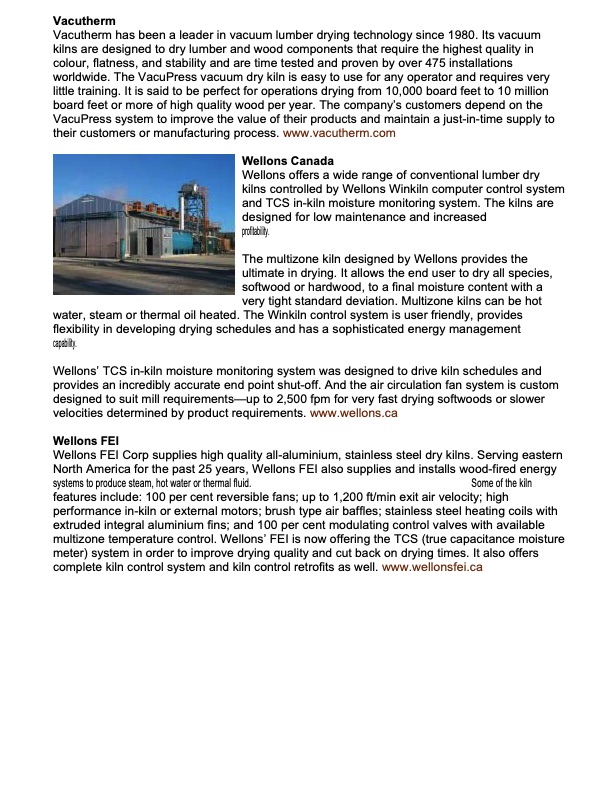

Vacutherm Vacutherm has been a leader in vacuum lumber drying technology since 1980. Its vacuum kilns are designed to dry lumber and wood components that require the highest quality in colour, flatness, and stability and are time tested and proven by over 475 installations worldwide. The VacuPress vacuum dry kiln is easy to use for any operator and requires very little training. It is said to be perfect for operations drying from 10,000 board feet to 10 million board feet or more of high quality wood per year. The company’s customers depend on the VacuPress system to improve the value of their products and maintain a just-in-time supply to their customers or manufacturing process. www.vacutherm.com Wellons Canada Wellons offers a wide range of conventional lumber dry kilns controlled by Wellons Winkiln computer control system and TCS in-kiln moisture monitoring system. The kilns are designed for low maintenance and increased profitability. The multizone kiln designed by Wellons provides the ultimate in drying. It allows the end user to dry all species, softwood or hardwood, to a final moisture content with a very tight standard deviation. Multizone kilns can be hot water, steam or thermal oil heated. The Winkiln control system is user friendly, provides flexibility in developing drying schedules and has a sophisticated energy management capability. Wellons’ TCS in-kiln moisture monitoring system was designed to drive kiln schedules and provides an incredibly accurate end point shut-off. And the air circulation fan system is custom designed to suit mill requirements—up to 2,500 fpm for very fast drying softwoods or slower velocities determined by product requirements. www.wellons.ca Wellons FEI Wellons FEI Corp supplies high quality all-aluminium, stainless steel dry kilns. Serving eastern North America for the past 25 years, Wellons FEI also supplies and installs wood-fired energy systems to produce steam, hot water or thermal fluid. Some of the kiln features include: 100 per cent reversible fans; up to 1,200 ft/min exit air velocity; high performance in-kiln or external motors; brush type air baffles; stainless steel heating coils with extruded integral aluminium fins; and 100 per cent modulating control valves with available multizone temperature control. Wellons’ FEI is now offering the TCS (true capacitance moisture meter) system in order to improve drying quality and cut back on drying times. It also offers complete kiln control system and kiln control retrofits as well. www.wellonsfei.caPDF Image | Tech Update - Kiln equipment
