PDF Publication Title:
Text from PDF Page: 036

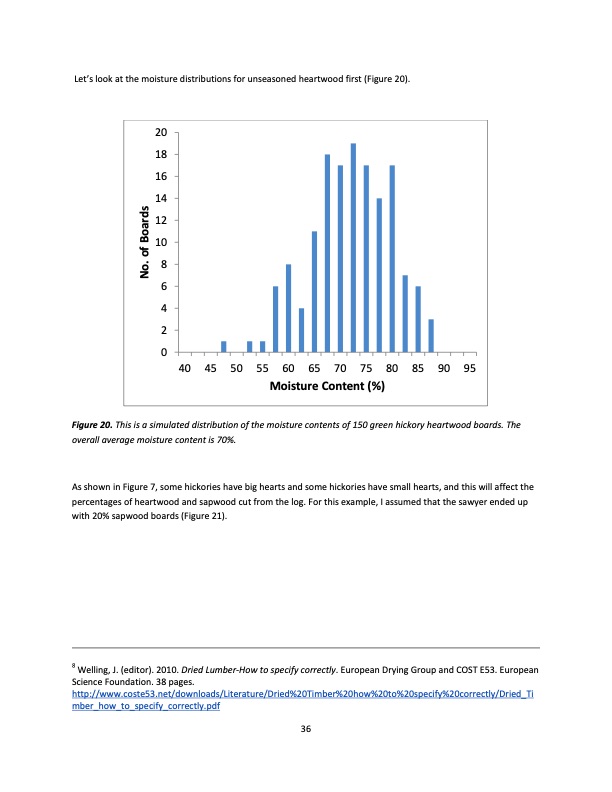

Let’s look at the moisture distributions for unseasoned heartwood first (Figure 20). 20 18 16 14 12 10 8 6 4 2 0 40 45 50 55 60 65 70 75 80 85 90 95 Moisture Content (%) Figure 20. This is a simulated distribution of the moisture contents of 150 green hickory heartwood boards. The overall average moisture content is 70%. As shown in Figure 7, some hickories have big hearts and some hickories have small hearts, and this will affect the percentages of heartwood and sapwood cut from the log. For this example, I assumed that the sawyer ended up with 20% sapwood boards (Figure 21). 8 Welling, J. (editor). 2010. Dried Lumber-How to specify correctly. European Drying Group and COST E53. European Science Foundation. 38 pages. http://www.coste53.net/downloads/Literature/Dried%20Timber%20how%20to%20specify%20correctly/Dried_Ti mber_how_to_specify_correctly.pdf 36 No. of BoardsPDF Image | HARDWOOD DRY KILN OPERATION A MANUAL FOR OPERATORS OF SMALL DRY KILNS
