Text from PDF Page: 010

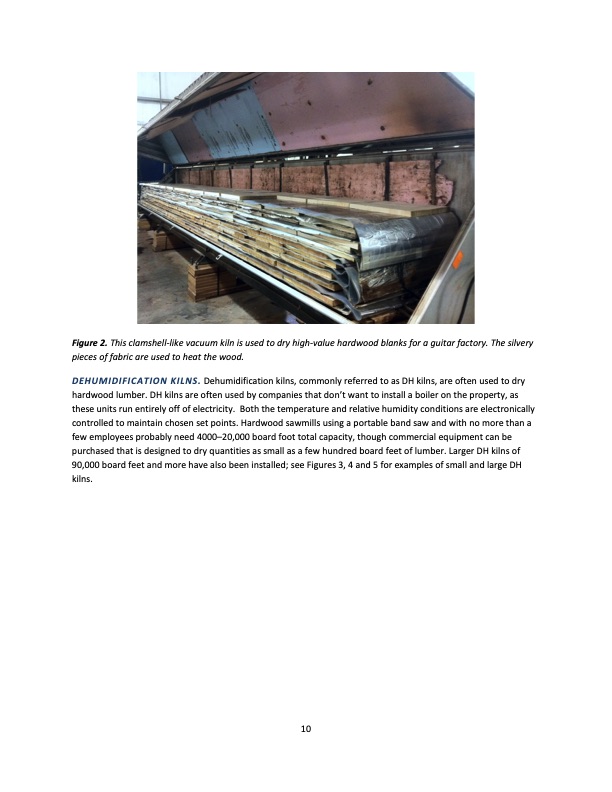

Figure 2. This clamshell-like vacuum kiln is used to dry high-value hardwood blanks for a guitar factory. The silvery pieces of fabric are used to heat the wood. DEHUMIDIFICATION KILNS. Dehumidification kilns, commonly referred to as DH kilns, are often used to dry hardwood lumber. DH kilns are often used by companies that don’t want to install a boiler on the property, as these units run entirely off of electricity. Both the temperature and relative humidity conditions are electronically controlled to maintain chosen set points. Hardwood sawmills using a portable band saw and with no more than a few employees probably need 4000–20,000 board foot total capacity, though commercial equipment can be purchased that is designed to dry quantities as small as a few hundred board feet of lumber. Larger DH kilns of 90,000 board feet and more have also been installed; see Figures 3, 4 and 5 for examples of small and large DH kilns. 10PDF Image | HARDWOOD DRY KILN OPERATION A MANUAL FOR OPERATORS OF SMALL DRY KILNS
