PDF Publication Title:
Text from PDF Page: 004

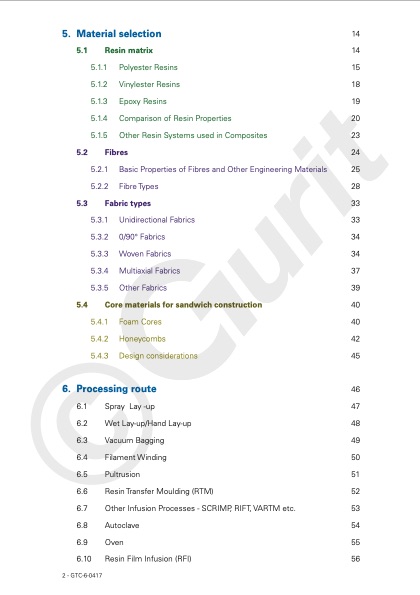

5. Material selection 14 5.1 Resin matrix 14 5.1.1 Polyester Resins 15 5.1.2 Vinylester Resins 18 5.1.3 Epoxy Resins 19 5.1.4 Comparison of Resin Properties 20 5.1.5 Other Resin Systems used in Composites 23 Fibres 24 5.2.1 Basic Properties of Fibres and Other Engineering Materials 25 5.2.2 Fibre Types 28 Fabric types 33 5.3.1 Unidirectional Fabrics 33 5.3.2 0/90° Fabrics 34 5.3.3 Woven Fabrics 34 5.3.4 Multiaxial Fabrics 37 5.3.5 Other Fabrics 39 Core materials for sandwich construction 40 5.4.1 Foam Cores 40 5.4.2 Honeycombs 42 5.4.3 Design considerations 45 5.2 5.3 5.4 6. Processing route 46 6.1 Spray Lay -up 47 6.2 Wet Lay-up/Hand Lay-up 48 6.3 Vacuum Bagging 49 6.4 Filament Winding 50 6.5 Pultrusion 51 6.6 Resin Transfer Moulding (RTM) 52 6.7 Other Infusion Processes - SCRIMP, RIFT, VARTM etc. 53 6.8 Autoclave 54 6.9 Oven 55 6.10 Resin Film Infusion (RFI) 56 2 - GTC-6-0417PDF Image | GUIDE TO COMPOSITES
