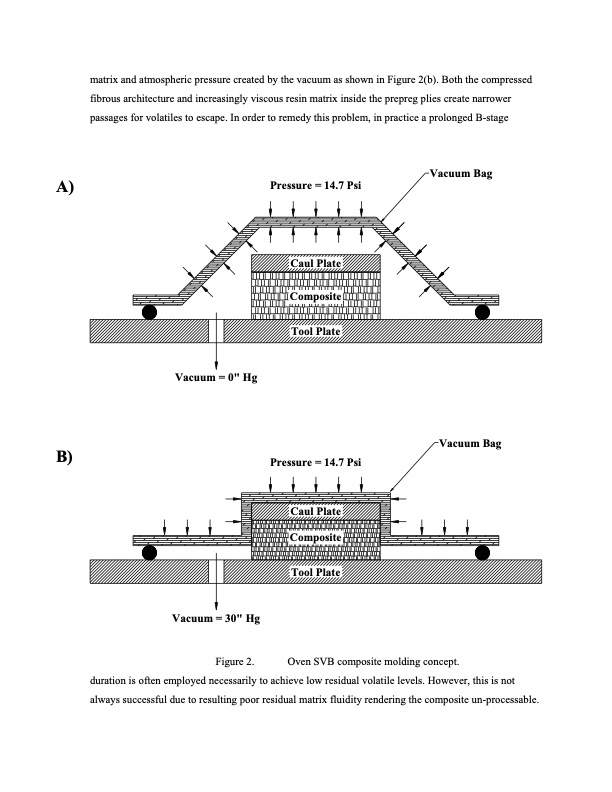

A) matrix and atmospheric pressure created by the vacuum as shown in Figure 2(b). Both the compressed fibrous architecture and increasingly viscous resin matrix inside the prepreg plies create narrower passages for volatiles to escape. In order to remedy this problem, in practice a prolonged B-stage Vacuum Bag Pressure = 14.7 Psi Caul Plate Tool Plate Composite B) Vacuum Bag Vacuum = 0" Hg Pressure = 14.7 Psi Tool Plate Caul Plate Composite Vacuum = 30" Hg Oven SVB composite molding concept. always successful due to resulting poor residual matrix fluidity rendering the composite un-processable. Figure 2. duration is often employed necessarily to achieve low residual volatile levels. However, this is notPDF Image | Evaluation of Double-Vacuum-Bag Process For Composite Fabrication
