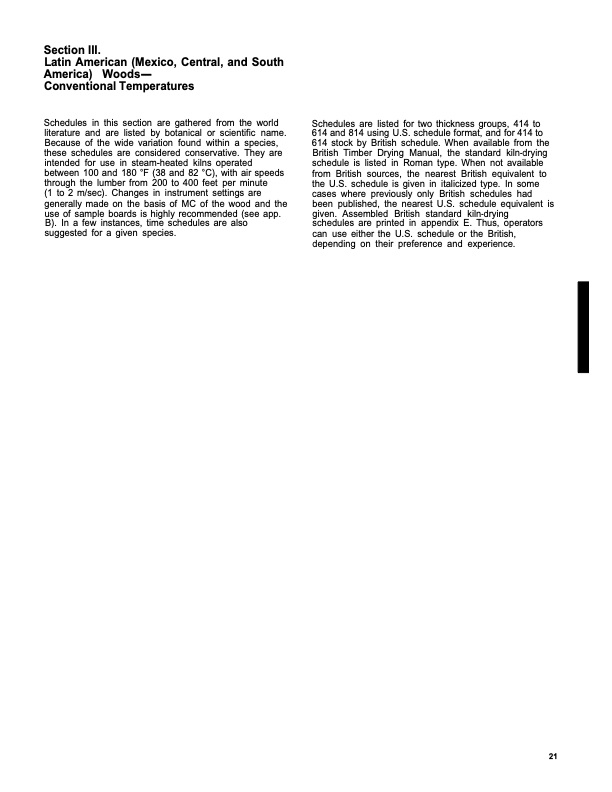

Section III. Latin American (Mexico, Central, and South America) Woods- Conventional Temperatures Schedules in this section are gathered from the world literature and are listed by botanical or scientific name. Because of the wide variation found within a species, these schedules are considered conservative. They are intended for use in steam-heated kilns operated between 100 and 180 °F (38 and 82 °C), with air speeds through the lumber from 200 to 400 feet per minute (1 to 2 m/sec). Changes in instrument settings are generally made on the basis of MC of the wood and the use of sample boards is highly recommended (see app. B). In a few instances, time schedules are also suggested for a given species. Schedules are listed for two thickness groups, 414 to 614 and 814 using U.S. schedule format, and for 414 to 614 stock by British schedule. When available from the British Timber Drying Manual, the standard kiln-drying schedule is listed in Roman type. When not available from British sources, the nearest British equivalent to the U.S. schedule is given in italicized type. In some cases where previously only British schedules had been published, the nearest U.S. schedule equivalent is given. Assembled British standard kiln-drying schedules are printed in appendix E. Thus, operators can use either the U.S. schedule or the British, depending on their preference and experience. 21PDF Image | Dry Kiln Schedules for Commercial Woods Temperate and Tropical
