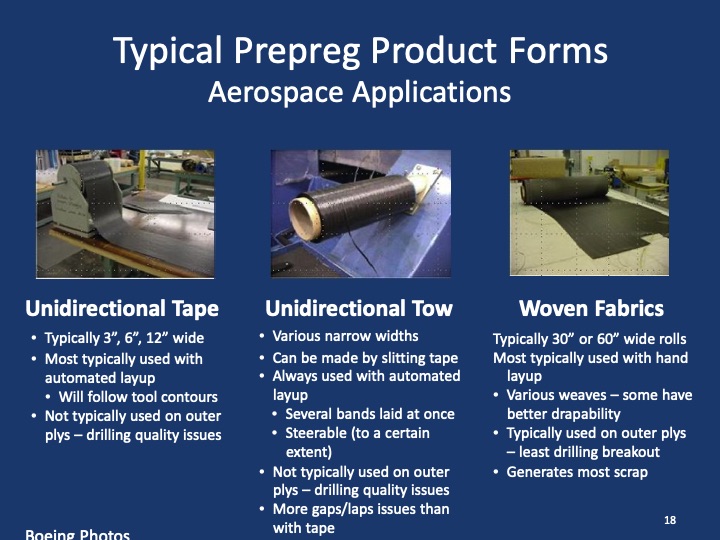

Typical Prepreg Product Forms Aerospace Applications Unidirectional Tape • Typically 3”, 6”, 12” wide • Most typically used with automated layup • Will follow tool contours • Not typically used on outer plys – drilling quality issues Unidirectional Tow • Various narrow widths • Can be made by slitting tape • Always used with automated layup • Several bands laid at once • Steerable (to a certain extent) • Not typically used on outer plys – drilling quality issues • More gaps/laps issues than Woven Fabrics Typically 30” or 60” wide rolls Most typically used with hand layup • Various weaves – some have better drapability • Typically used on outer plys – least drilling breakout • Generates most scrap Boeing Photos with tape 18PDF Image | Composites 101 Workshop
