Text from PDF Page: 575

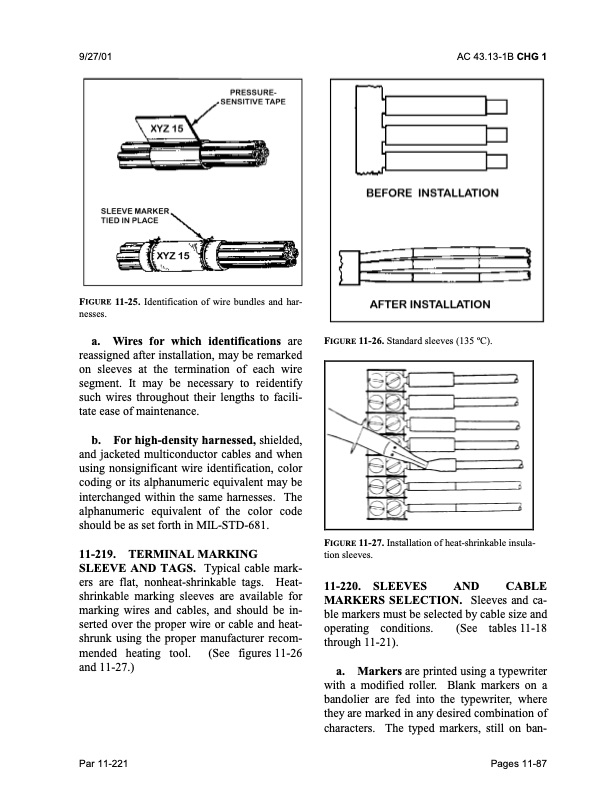

9/27/01 AC 43.13-1B CHG 1 FIGURE 11-25. Identification of wire bundles and har nesses. a. Wires for which identifications are reassigned after installation, may be remarked on sleeves at the termination of each wire segment. It may be necessary to reidentify such wires throughout their lengths to facili tate ease of maintenance. b. For high-density harnessed, shielded, and jacketed multiconductor cables and when using nonsignificant wire identification, color coding or its alphanumeric equivalent may be interchanged within the same harnesses. The alphanumeric equivalent of the color code should be as set forth in MIL-STD-681. 11-219. TERMINAL MARKING SLEEVE AND TAGS. Typical cable mark ers are flat, nonheat-shrinkable tags. Heat- shrinkable marking sleeves are available for marking wires and cables, and should be in serted over the proper wire or cable and heat- shrunk using the proper manufacturer recom FIGURE 11-26. Standard sleeves (135 oC). FIGURE 11-27. Installation of heat-shrinkable insula tion sleeves. 11-220. SLEEVES AND CABLE MARKERS SELECTION. Sleeves and ca ble markers must be selected by cable size and operating conditions. (See tables 11-18 through 11-21). a. Markers are printed using a typewriter with a modified roller. Blank markers on a bandolier are fed into the typewriter, where they are marked in any desired combination of characters. The typed markers, still on ban- mended heating and 11-27.) tool. (See figures 11-26 Par 11-221 Pages 11-87PDF Image | AFS-640
