Text from PDF Page: 530

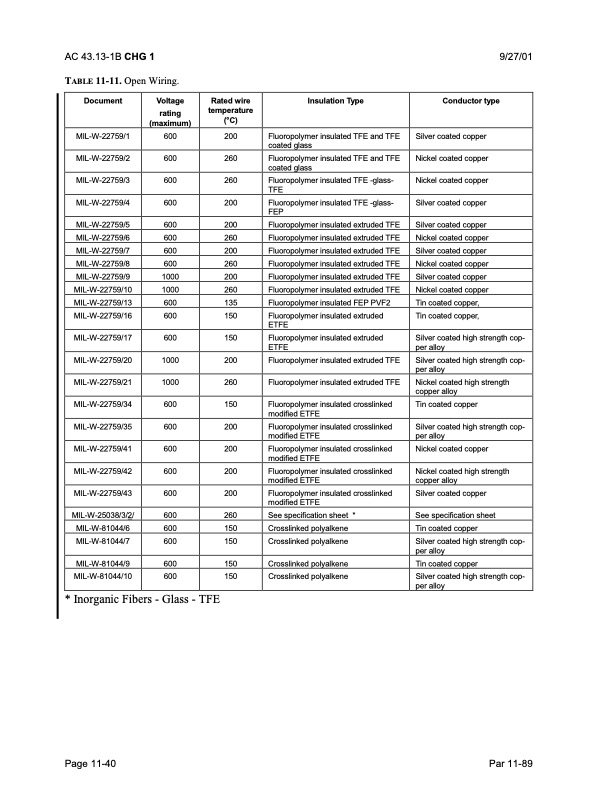

AC 43.13-1B CHG 1 TABLE 11-11. Open Wiring. Document Voltage rating (maximum) MIL-W-22759/1 600 MIL-W-22759/2 600 MIL-W-22759/3 600 MIL-W-22759/4 600 MIL-W-22759/5 600 MIL-W-22759/6 600 MIL-W-22759/7 600 MIL-W-22759/8 600 MIL-W-22759/9 1000 MIL-W-22759/10 1000 MIL-W-22759/13 600 MIL-W-22759/16 600 MIL-W-22759/17 600 MIL-W-22759/20 1000 MIL-W-22759/21 1000 MIL-W-22759/34 600 MIL-W-22759/35 600 MIL-W-22759/41 600 MIL-W-22759/42 600 MIL-W-22759/43 600 MIL-W-25038/3/2/ 600 MIL-W-81044/6 600 MIL-W-81044/7 600 MIL-W-81044/9 600 MIL-W-81044/10 600 * Inorganic Fibers - Glass - TFE Insulation Type Fluoropolymer insulated TFE and TFE coated glass Fluoropolymer insulated TFE and TFE coated glass Fluoropolymer insulated TFE -glass- TFE Fluoropolymer insulated TFE -glass- FEP Fluoropolymer insulated extruded TFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated FEP PVF2 Fluoropolymer insulated extruded ETFE Fluoropolymer insulated extruded ETFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated extruded TFE Fluoropolymer insulated crosslinked modified ETFE Fluoropolymer insulated crosslinked modified ETFE Fluoropolymer insulated crosslinked modified ETFE Fluoropolymer insulated crosslinked modified ETFE Fluoropolymer insulated crosslinked modified ETFE 9/27/01 Conductor type Silver coated copper Nickel coated copper Nickel coated copper Silver coated copper Silver coated copper Nickel coated copper Silver coated copper Nickel coated copper Silver coated copper Nickel coated copper Tin coated copper, Tin coated copper, Silver coated high strength cop- per alloy Silver coated high strength cop- per alloy Nickel coated high strength copper alloy Tin coated copper Silver coated high strength cop- per alloy Nickel coated copper Nickel coated high strength copper alloy Silver coated copper See specification sheet Tin coated copper Silver coated high strength cop- per alloy Tin coated copper Silver coated high strength cop- per alloy Rated wire temperature (°C) 200 260 260 200 200 260 200 260 200 260 135 150 150 200 260 150 200 200 200 200 260 150 150 150 150 See specification sheet Crosslinked polyalkene Crosslinked polyalkene Crosslinked polyalkene Crosslinked polyalkene * Page 11-40 Par 11-89PDF Image | AFS-640
