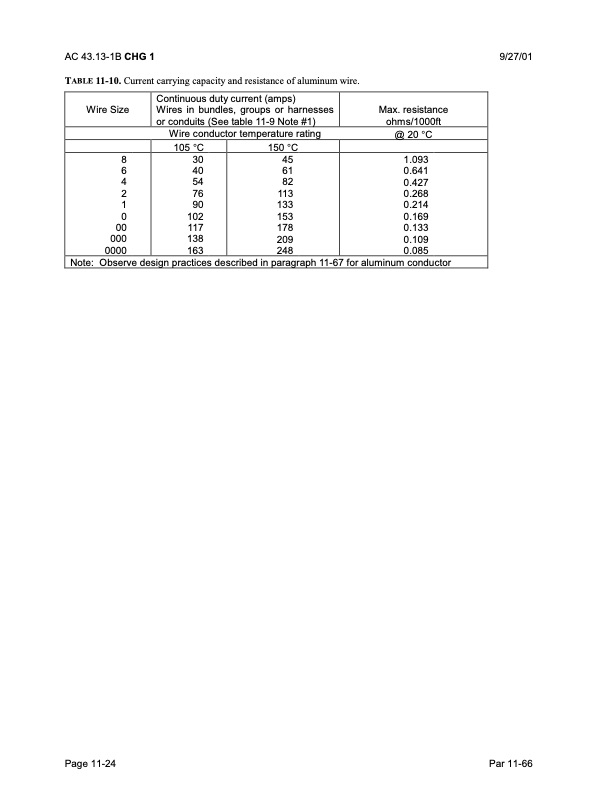

AC 43.13-1B CHG 1 TABLE 11-10. Current carrying capacity and resistance of aluminum wire. 9/27/01 Wire Size 8 6 4 2 1 0 00 000 0000 Continuous duty current (amps) Wires in bundles, groups or harnesses or conduits (See table 11-9 Note #1) Wire conductor temperature rating Max. resistance ohms/1000ft @ 20 °C 105 °C 30 40 54 76 90 102 117 138 163 150 °C 45 61 82 113 133 153 178 209 248 1.093 0.641 0.427 0.268 0.214 0.169 0.133 0.109 0.085 Note: Observe design practices described in paragraph 11-67 for aluminum conductor Page 11-24 Par 11-66PDF Image | AFS-640
