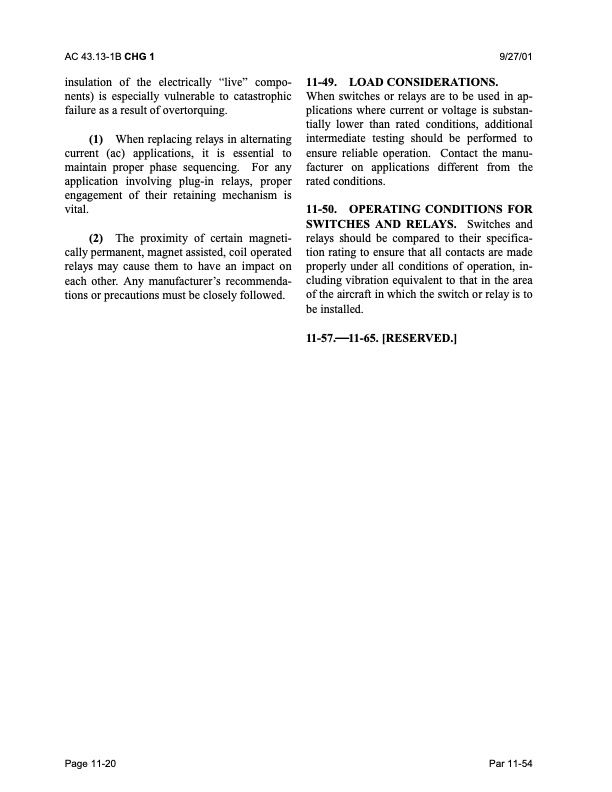

AC 43.13-1B CHG 1 insulation of the electrically “live” compo- nents) is especially vulnerable to catastrophic failure as a result of overtorquing. (1) When replacing relays in alternating current (ac) applications, it is essential to maintain proper phase sequencing. For any application involving plug-in relays, proper engagement of their retaining mechanism is vital. (2) The proximity of certain magneti- cally permanent, magnet assisted, coil operated relays may cause them to have an impact on each other. Any manufacturer’s recommenda- tions or precautions must be closely followed. 9/27/01 When switches or relays are to be used in ap- plications where current or voltage is substan- tially lower than rated conditions, additional intermediate testing should be performed to ensure reliable operation. Contact the manu- facturer on applications different from the rated conditions. 11-50. OPERATING CONDITIONS FOR SWITCHES AND RELAYS. Switches and relays should be compared to their specifica- tion rating to ensure that all contacts are made properly under all conditions of operation, in- cluding vibration equivalent to that in the area of the aircraft in which the switch or relay is to be installed. 11-57.11-65. [RESERVED.] Page 11-20 Par 11-54 11-49. LOAD CONSIDERATIONS.PDF Image | AFS-640
