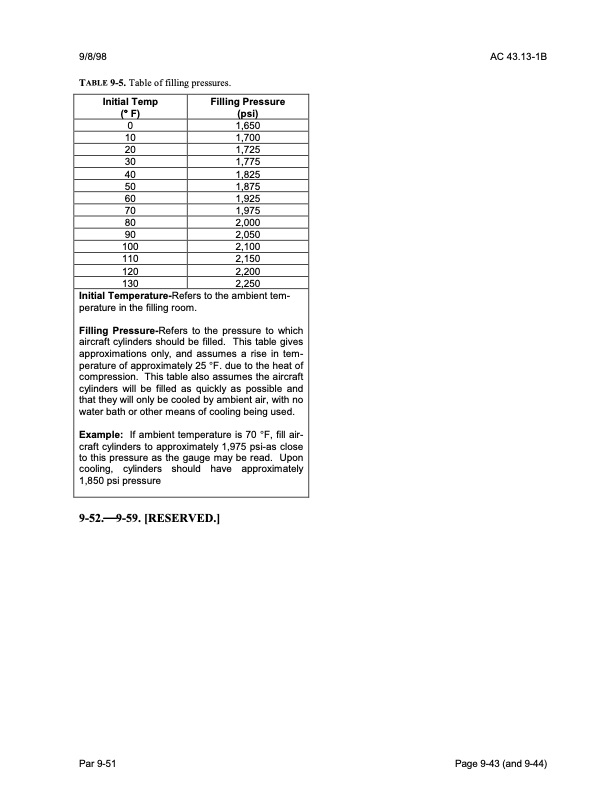

9/8/98 AC 43.13-1B TABLE 9-5. Table of filling pressures. Initial Temp (° F) 0 10 20 30 40 50 60 70 80 90 100 110 120 130 Filling Pressure (psi) 1,650 1,700 1,725 1,775 1,825 1,875 1,925 1,975 2,000 2,050 2,100 2,150 2,200 2,250 Initial Temperature-Refers to the ambient tem- perature in the filling room. Filling Pressure-Refers to the pressure to which aircraft cylinders should be filled. This table gives approximations only, and assumes a rise in tem- perature of approximately 25 °F. due to the heat of compression. This table also assumes the aircraft cylinders will be filled as quickly as possible and that they will only be cooled by ambient air, with no water bath or other means of cooling being used. Example: If ambient temperature is 70 °F, fill air- craft cylinders to approximately 1,975 psi-as close to this pressure as the gauge may be read. Upon cooling, cylinders should have approximately 1,850 psi pressure 9-52.9-59. [RESERVED.] Par 9-51 Page 9-43 (and 9-44)PDF Image | AFS-640
