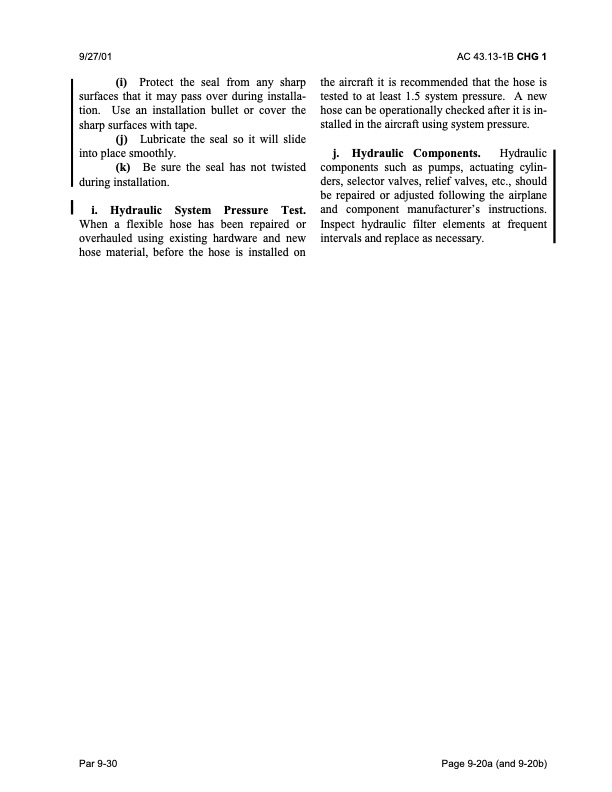

9/27/01 AC 43.13-1B CHG 1 (i) Protect the seal from any sharp surfaces that it may pass over during installa tion. Use an installation bullet or cover the sharp surfaces with tape. (j) Lubricate the seal so it will slide into place smoothly. (k) Be sure the seal has not twisted during installation. i. Hydraulic System Pressure Test. When a flexible hose has been repaired or overhauled using existing hardware and new hose material, before the hose is installed on the aircraft it is recommended that the hose is tested to at least 1.5 system pressure. A new hose can be operationally checked after it is in stalled in the aircraft using system pressure. j. Hydraulic Components. Hydraulic components such as pumps, actuating cylin ders, selector valves, relief valves, etc., should be repaired or adjusted following the airplane and component manufacturer’s instructions. Inspect hydraulic filter elements at frequent intervals and replace as necessary. Par 9-30 Page 9-20a (and 9-20b)PDF Image | AFS-640
