PDF Publication Title:
Text from PDF Page: 374

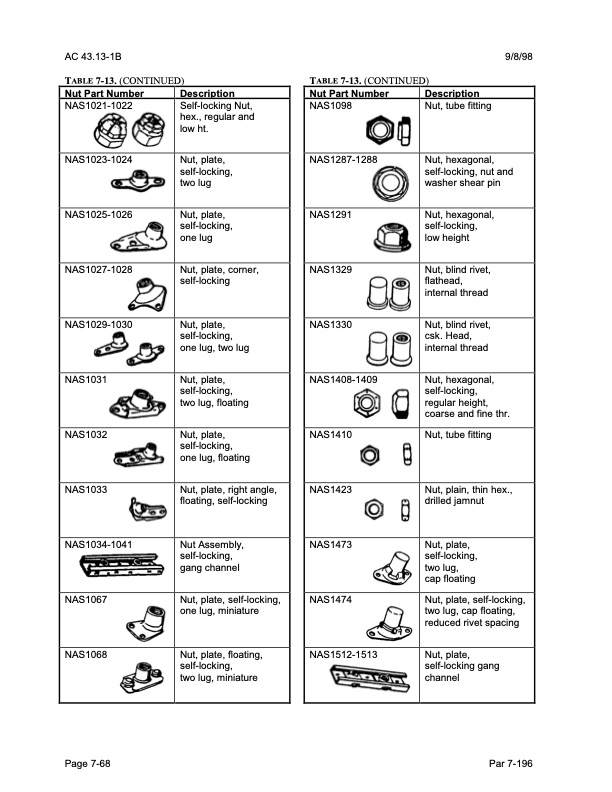

AC 43.13-1B 9/8/98 TABLE 7-13. (CONTINUED) Nut Part Number Description TABLE 7-13. (CONTINUED) Nut Part Number Description NAS1021-1022 Self-locking Nut, hex., regular and low ht. NAS1023-1024 Nut, plate, self-locking, two lug NAS1025-1026 Nut, plate, self-locking, one lug NAS1027-1028 Nut, plate, corner, self-locking NAS1029-1030 Nut, plate, self-locking, one lug, two lug NAS1031 Nut, plate, self-locking, two lug, floating NAS1032 Nut, plate, self-locking, one lug, floating NAS1033 Nut, plate, right angle, floating, self-locking NAS1034-1041 Nut Assembly, self-locking, gang channel NAS1067 Nut, plate, self-locking, one lug, miniature NAS1068 Nut, plate, floating, self-locking, two lug, miniature NAS1098 Nut, tube fitting NAS1287-1288 Nut, hexagonal, self-locking, nut and washer shear pin NAS1291 Nut, hexagonal, self-locking, low height NAS1329 Nut, blind rivet, flathead, internal thread NAS1330 Nut, blind rivet, csk. Head, internal thread NAS1408-1409 Nut, hexagonal, self-locking, regular height, coarse and fine thr. NAS1410 Nut, tube fitting NAS1423 Nut, plain, thin hex., drilled jamnut NAS1473 Nut, plate, self-locking, two lug, cap floating NAS1474 Nut, plate, self-locking, two lug, cap floating, reduced rivet spacing NAS1512-1513 Nut, plate, self-locking gang channel Page 7-68 Par 7-196PDF Image | AFS-640
PDF Search Title:
AFS-640Original File Name Searched:
ac_43.13-1b_w-chg1.pdfDIY PDF Search: Google It | Yahoo | Bing
