Text from PDF Page: 368

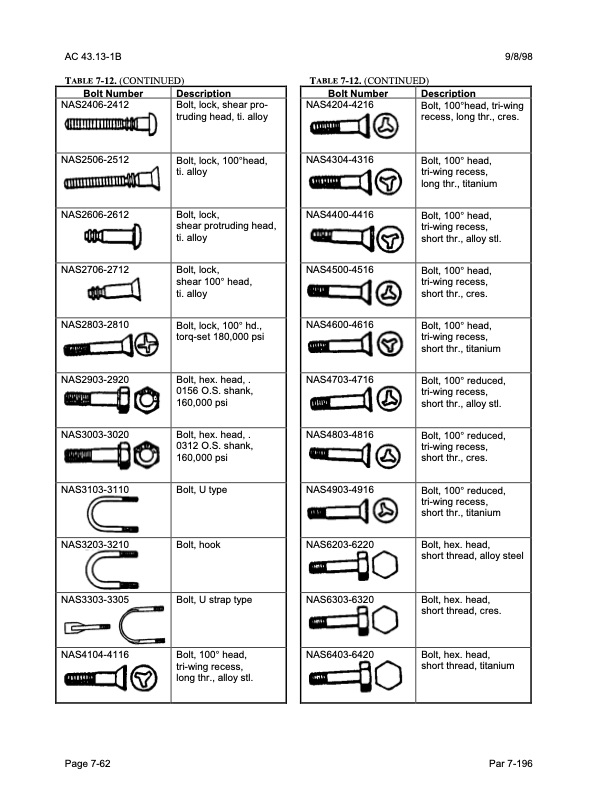

AC 43.13-1B 9/8/98 TABLE 7-12. (CONTINUED) Bolt Number Description TABLE 7-12. (CONTINUED) Bolt Number Description NAS2406-2412 Bolt, lock, shear pro- truding head, ti. alloy NAS2506-2512 Bolt, lock, 100°head, ti. alloy NAS2606-2612 Bolt, lock, shear protruding head, ti. alloy NAS2706-2712 Bolt, lock, shear 100° head, ti. alloy NAS2803-2810 Bolt, lock, 100° hd., torq-set 180,000 psi NAS2903-2920 Bolt, hex. head, . 0156 O.S. shank, 160,000 psi NAS3003-3020 Bolt, hex. head, . 0312 O.S. shank, 160,000 psi NAS3103-3110 Bolt, U type NAS3203-3210 Bolt, hook NAS3303-3305 Bolt, U strap type NAS4104-4116 Bolt, 100° head, tri-wing recess, long thr., alloy stl. NAS4204-4216 Bolt, 100°head, tri-wing recess, long thr., cres. NAS4304-4316 Bolt, 100° head, tri-wing recess, long thr., titanium NAS4400-4416 Bolt, 100° head, tri-wing recess, short thr., alloy stl. NAS4500-4516 Bolt, 100° head, tri-wing recess, short thr., cres. NAS4600-4616 Bolt, 100° head, tri-wing recess, short thr., titanium NAS4703-4716 Bolt, 100° reduced, tri-wing recess, short thr., alloy stl. NAS4803-4816 Bolt, 100° reduced, tri-wing recess, short thr., cres. NAS4903-4916 Bolt, 100° reduced, tri-wing recess, short thr., titanium NAS6203-6220 Bolt, hex. head, short thread, alloy steel NAS6303-6320 Bolt, hex. head, short thread, cres. NAS6403-6420 Bolt, hex. head, short thread, titanium Page 7-62 Par 7-196PDF Image | AFS-640
