Text from PDF Page: 338

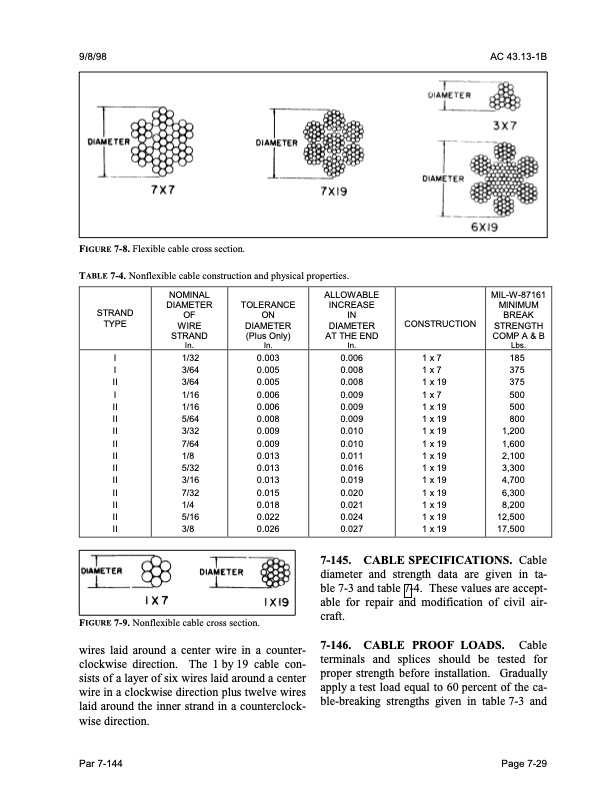

9/8/98 AC 43.13-1B FIGURE 7-8. Flexible cable cross section. TABLE 7-4. Nonflexible cable construction and physical properties. STRAND TYPE NOMINAL DIAMETER OF WIRE STRAND In. TOLERANCE ON DIAMETER (Plus Only) In. ALLOW ABLE INCREASE IN DIAMETER AT THE END In. CONSTRUCTION MIL-W-87161 MINIMUM BREAK STRENGTH COMP A & B Lbs. I I II I II II II II II II II II II II II 1/32 3/64 3/64 1/16 1/16 5/64 3/32 7/64 1/8 5/32 3/16 7/32 1/4 5/16 3/8 0.003 0.005 0.005 0.006 0.006 0.008 0.009 0.009 0.013 0.013 0.013 0.015 0.018 0.022 0.026 0.006 0.008 0.008 0.009 0.009 0.009 0.010 0.010 0.011 0.016 0.019 0.020 0.021 0.024 0.027 1x7 1x7 1 x 19 1x7 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 1 x 19 185 375 375 500 500 800 1,200 1,600 2,100 3,300 4,700 6,300 8,200 12,500 17,500 FIGURE 7-9. Nonflexible cable cross section. wires laid around a center wire in a counter clockwise direction. The 1 by 19 cable con sists of a layer of six wires laid around a center wire in a clockwise direction plus twelve wires laid around the inner strand in a counterclock wise direction. 7-145. CABLE SPECIFICATIONS. Cable diameter and strength data are given in ta ble 7-3 and table 7-4. These values are accept able for repair and modification of civil air craft. 7-146. CABLE PROOF LOADS. Cable terminals and splices should be tested for proper strength before installation. Gradually apply a test load equal to 60 percent of the ca ble-breaking strengths given in table 7-3 and Par 7-144 Page 7-29PDF Image | AFS-640
