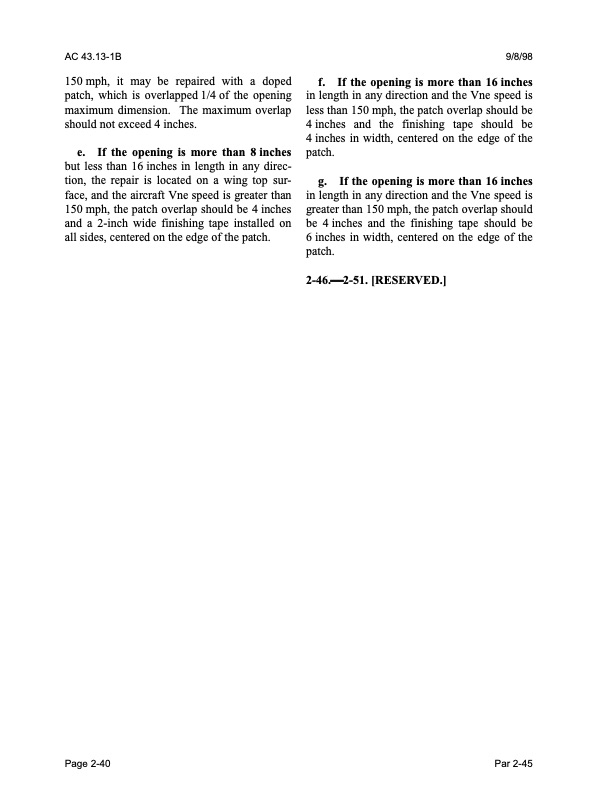

AC 43.13-1B 9/8/98 150 mph, it may be repaired with a doped patch, which is overlapped 1/4 of the opening maximum dimension. The maximum overlap should not exceed 4 inches. e. If the opening is more than 8 inches but less than 16 inches in length in any direc tion, the repair is located on a wing top sur face, and the aircraft Vne speed is greater than 150 mph, the patch overlap should be 4 inches and a 2-inch wide finishing tape installed on all sides, centered on the edge of the patch. f. If the opening is more than 16 inches in length in any direction and the Vne speed is less than 150 mph, the patch overlap should be 4inches and the finishing tape should be 4 inches in width, centered on the edge of the patch. g. If the opening is more than 16 inches in length in any direction and the Vne speed is greater than 150 mph, the patch overlap should be 4 inches and the finishing tape should be 6 inches in width, centered on the edge of the patch. 2-46.2-51. [RESERVED.] Page 2-40 Par 2-45PDF Image | AFS-640
