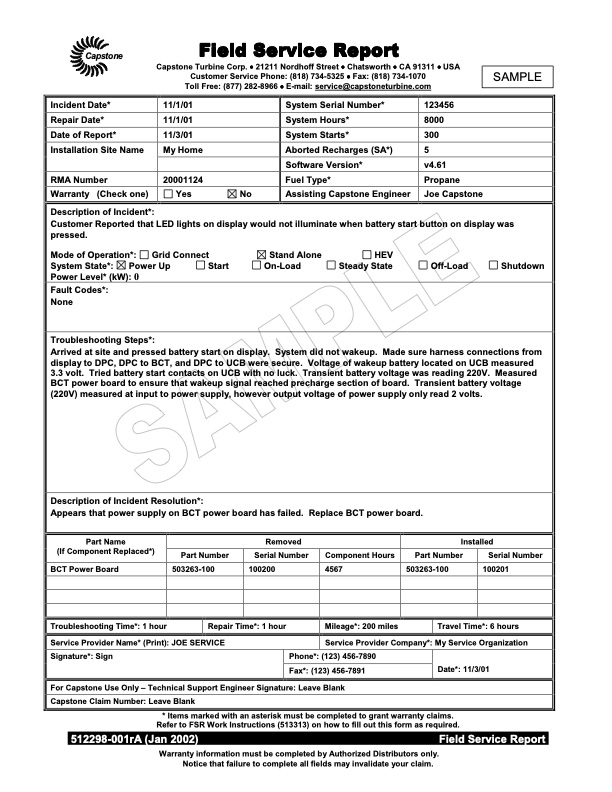

Capstone Field Service Report Capstone Turbine Corp. • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Customer Service Phone: (818) 734-5325 • Fax: (818) 734-1070 Toll Free: (877) 282-8966 • E-mail: service@capstoneturbine.com SAMPLE Incident Date* Repair Date* Date of Report* Installation Site Name RMA Number Warranty (Check one) 11/1/01 11/1/01 11/3/01 My Home 20001124 Yes No System Serial Number* System Hours* System Starts* Aborted Recharges (SA*) Software Version* Fuel Type* Assisting Capstone Engineer 123456 8000 300 5 v4.61 Propane Joe Capstone Description of Incident*: Customer Reported that LED lights on display would not illuminate when battery start button on display was pressed. Mode of Operation*: Grid Connect Stand Alone HEV System State*: Power Up Start On-Load Steady State Off-Load Shutdown Power Level* (kW): 0 Fault Codes*: None Troubleshooting Steps*: Arrived at site and pressed battery start on display. System did not wakeup. Made sure harness connections from display to DPC, DPC to BCT, and DPC to UCB were secure. Voltage of wakeup battery located on UCB measured 3.3 volt. Tried battery start contacts on UCB with no luck. Transient battery voltage was reading 220V. Measured BCT power board to ensure that wakeup signal reached precharge section of board. Transient battery voltage (220V) measured at input to power supply, however output voltage of power supply only read 2 volts. Description of Incident Resolution*: Appears that power supply on BCT power board has failed. Replace BCT power board. Part Name (If Component Replaced*) BCT Power Board Troubleshooting Time*: 1 hour Part Number 503263-100 Removed Serial Number Component Hours 4567 Mileage*: 200 miles Installed Part Number Serial Number 503263-100 100201 Travel Time*: 6 hours 100200 Repair Time*: 1 hour Service Provider Name* (Print): JOE SERVICE Signature*: Sign Service Provider Company*: My Service Organization Phone*: (123) 456-7890 Fax*: (123) 456-7891 Date*: 11/3/01 For Capstone Use Only ñ Technical Support Engineer Signature: Leave Blank Capstone Claim Number: Leave Blank * Items marked with an asterisk must be completed to grant warranty claims. Refer to FSR Work Instructions (513313) on how to fill out this form as required. 512298-001rA (Jan 2002) Field Service Report. Warranty information must be completed by Authorized Distributors only. Notice that failure to complete all fields may invalidate your claim.PDF Image | Work Instructions Field Service Report Form
