Text from PDF Page: 003

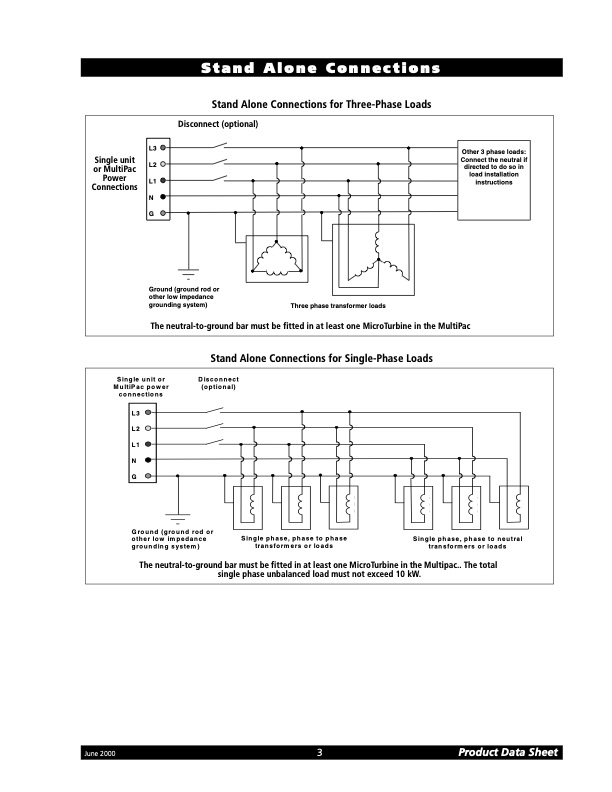

Stand Alone Connections Stand Alone Connections for Three-Phase Loads Disconnect (optional) L3 L2 L1 N G Other 3 phase loads: Connect the neutral if directed to do so in load installation instructions Ground (ground rod or other low impedance grounding system) Three phase transformer loads Single unit or MultiPac Power Connections The neutral-to-ground bar must be fitted in at least one MicroTurbine in the MultiPac Stand Alone Connections for Single-Phase Loads Single unit or Disconnect MultiPac power (optional) connections L3 L2 L1 N G Ground (ground rod or other low impedance grounding system) Single phase, phase to phase transformers or loads Single phase, phase to neutral transform ers or loads The neutral-to-ground bar must be fitted in at least one MicroTurbine in the Multipac.. The total single phase unbalanced load must not exceed 10 kW. June 2000 3 Product Data Sheet
