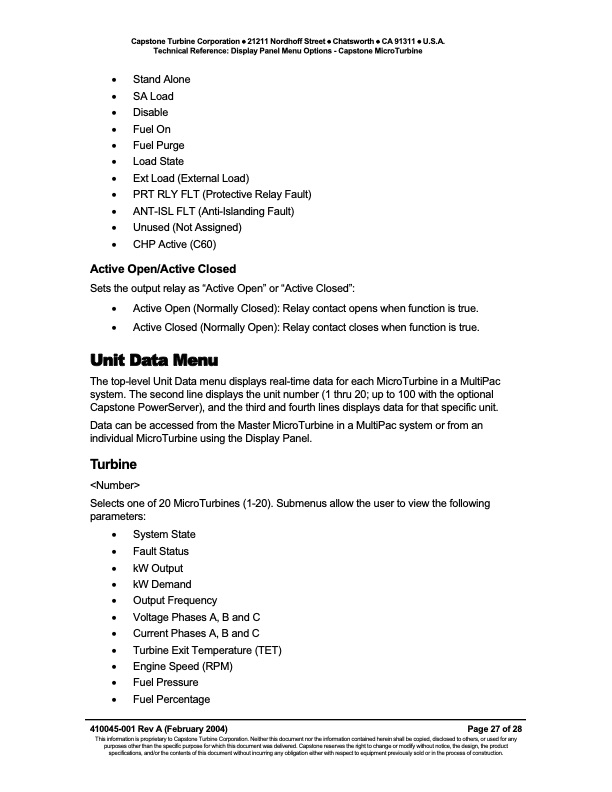

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine • Stand Alone • SA Load • Disable • Fuel On • Fuel Purge • Load State • Ext Load (External Load) • PRT RLY FLT (Protective Relay Fault) • ANT-ISL FLT (Anti-Islanding Fault) • Unused (Not Assigned) • CHP Active (C60) Active Open/Active Closed Sets the output relay as “Active Open” or “Active Closed”: • Active Open (Normally Closed): Relay contact opens when function is true. • Active Closed (Normally Open): Relay contact closes when function is true. Unit Data Menu The top-level Unit Data menu displays real-time data for each MicroTurbine in a MultiPac system. The second line displays the unit number (1 thru 20; up to 100 with the optional Capstone PowerServer), and the third and fourth lines displays data for that specific unit. Data can be accessed from the Master MicroTurbine in a MultiPac system or from an individual MicroTurbine using the Display Panel. TurbinePDF Image | Technical Reference Display Panel Menu Options Capstone MicroTurbine
