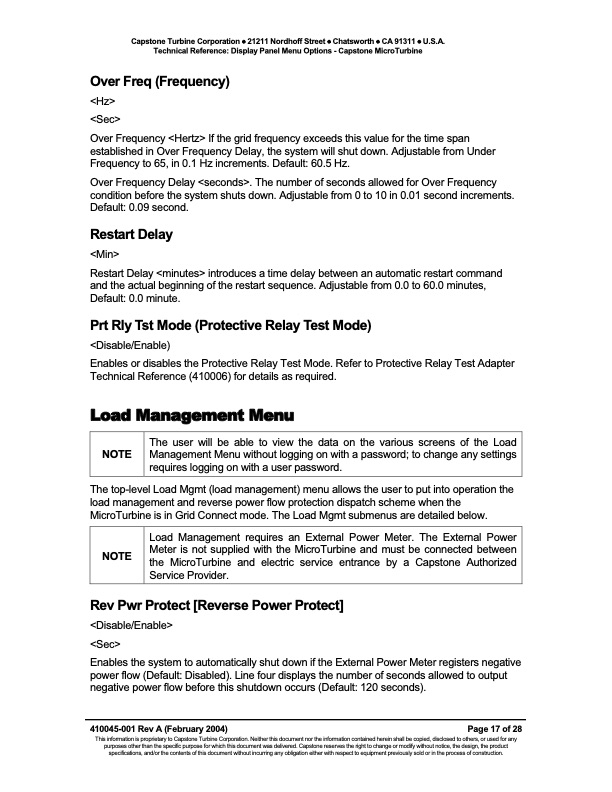

Text from PDF Page: 017

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • U.S.A. Technical Reference: Display Panel Menu Options - Capstone MicroTurbine Over Freq (Frequency) Over Frequency If the grid frequency exceeds this value for the time span established in Over Frequency Delay, the system will shut down. Adjustable from Under Frequency to 65, in 0.1 Hz increments. Default: 60.5 Hz. Over Frequency Delay . The number of seconds allowed for Over Frequency condition before the system shuts down. Adjustable from 0 to 10 in 0.01 second increments. Default: 0.09 second. Restart Delay Restart Delay introduces a time delay between an automatic restart command and the actual beginning of the restart sequence. Adjustable from 0.0 to 60.0 minutes, Default: 0.0 minute. Prt Rly Tst Mode (Protective Relay Test Mode) Enables the system to automatically shut down if the External Power Meter registers negative power flow (Default: Disabled). Line four displays the number of seconds allowed to output negative power flow before this shutdown occurs (Default: 120 seconds). 410045-001 Rev A (February 2004) Page 17 of 28 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE The user will be able to view the data on the various screens of the Load Management Menu without logging on with a password; to change any settings requires logging on with a user password. NOTE Load Management requires an External Power Meter. The External Power Meter is not supplied with the MicroTurbine and must be connected between the MicroTurbine and electric service entrance by a Capstone Authorized Service Provider.
