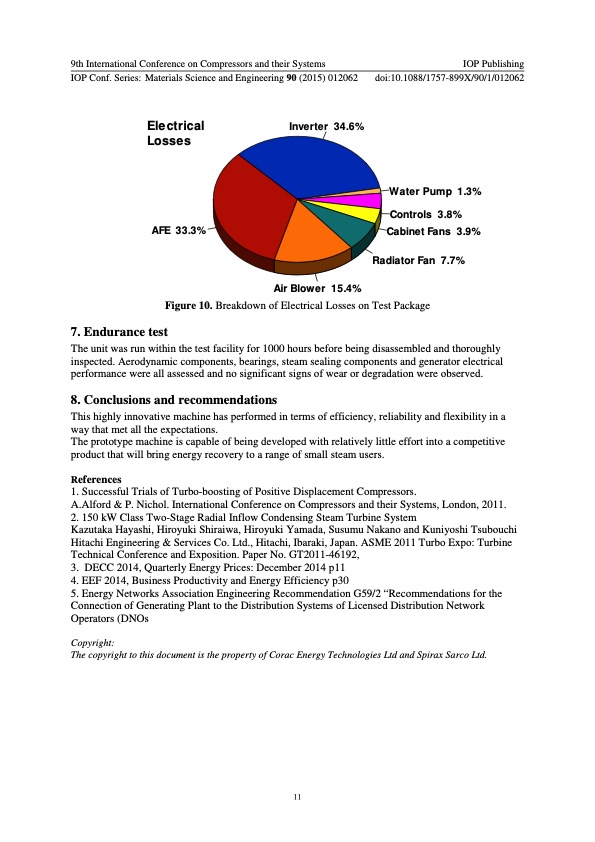

9th International Conference on Compressors and their Systems IOP Conf. Series: Materials Science and Engineering 90 (2015) 012062 IOP Publishing doi:10.1088/1757-899X/90/1/012062 Water Pump 1.3% Controls 3.8% Cabinet Fans 3.9% Radiator Fan 7.7% Electrical Losses AFE 33.3% Inverter 34.6% Air Blower 15.4% Figure 10. Breakdown of Electrical Losses on Test Package 7. Endurance test The unit was run within the test facility for 1000 hours before being disassembled and thoroughly inspected. Aerodynamic components, bearings, steam sealing components and generator electrical performance were all assessed and no significant signs of wear or degradation were observed. 8. Conclusions and recommendations This highly innovative machine has performed in terms of efficiency, reliability and flexibility in a way that met all the expectations. The prototype machine is capable of being developed with relatively little effort into a competitive product that will bring energy recovery to a range of small steam users. References 1. Successful Trials of Turbo-boosting of Positive Displacement Compressors. A.Alford & P. Nichol. International Conference on Compressors and their Systems, London, 2011. 2. 150 kW Class Two-Stage Radial Inflow Condensing Steam Turbine System Kazutaka Hayashi, Hiroyuki Shiraiwa, Hiroyuki Yamada, Susumu Nakano and Kuniyoshi Tsubouchi Hitachi Engineering & Services Co. Ltd., Hitachi, Ibaraki, Japan. ASME 2011 Turbo Expo: Turbine Technical Conference and Exposition. Paper No. GT2011-46192, 3. DECC 2014, Quarterly Energy Prices: December 2014 p11 4. EEF 2014, Business Productivity and Energy Efficiency p30 5. Energy Networks Association Engineering Recommendation G59/2 “Recommendations for the Connection of Generating Plant to the Distribution Systems of Licensed Distribution Network Operators (DNOs Copyright: The copyright to this document is the property of Corac Energy Technologies Ltd and Spirax Sarco Ltd. 11PDF Image | IOP Science The Development of a Small High Speed Steam Microturbine Generator System
