Text from PDF Page: 002

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0046: Wiring Interlock between MicroTurbines with Common Exhaust Duct Recommended Action Capstone requires performing the recommended procedure as an interim solution while an on-going investigation and possible alternative solutions are being explored and tested. Perform the following steps: 1. Command all MicroTurbines OFF. 2. Perform the following MicroTurbine-to-MicroTurbine series connections: NOTE: Any output relay and fault input may be used. Output Relay 1 and Fault Input 1 are used in this example. o TwoMicroTurbineconfiguration Connect MicroTurbine #1 Output Relay 1 to MicroTurbine #2 Fault Input 1. Connect MicroTurbine #2 Fault Input 1 to MicroTurbine #1 Output Relay 1. Connections for Model C30: Output Relay 1 – Connector TB5 - Pins 1 and 2 Fault Input 1 – Connector TB4 – Pins 5 and 6 Connections for Model C60: Output Relay 1 – Connector J15 - Pins 1 and 2 Fault Input 1 – Connector J12 – Pins 5 and 6 o ThreeormoreMicroTurbineconfiguration Connect the last MicroTurbine # Output Relay 1 to MicroTurbine # 1 Fault Input 1. Connect MicroTurbine # Fault Input 1 to MicroTurbine # Output Relay 1. Connections for C30: Output Relay 1 – Connector TB5 - Pins 1 and 2 Fault Input 1 – Connector TB4 – Pins 5 and 6 Connections for C60: Output Relay 1 – Connector J15 - Pins 1 and 2 Fault Input 1 – Connector J12 – Pins 5 and 6 MicroTurbine #1 MicroTurbine #2 MicroTurbine #n Flt Run Flt Run Flt Run Figure 1. MicroTurbine-MicroTurbine Interconnections 450011-001 Rev A (December 2002) Page 2 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

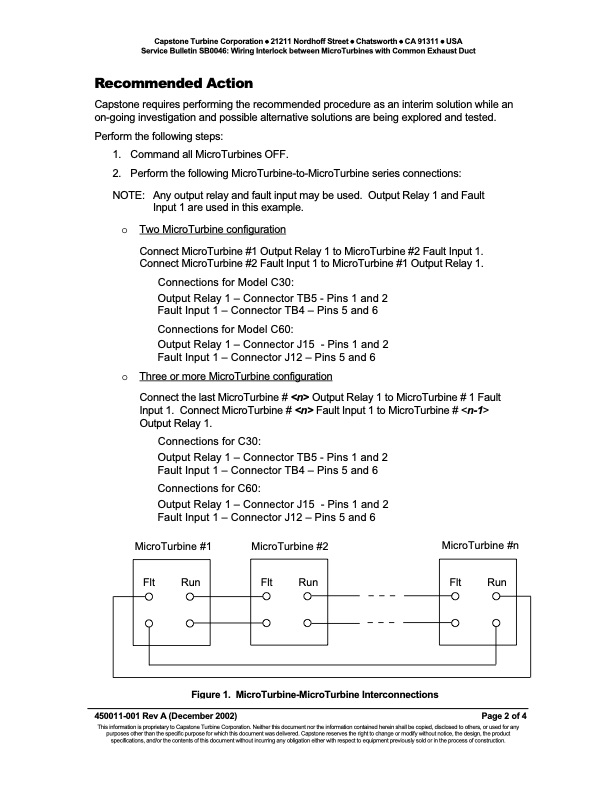

PDF Image | Wiring Interlock between Multiple MicroTurbines with Common Exhaust Duct

wiring-interlock-between-multiple-microturbines-with-common--002
