PDF Publication Title:
Text from PDF Page: 001

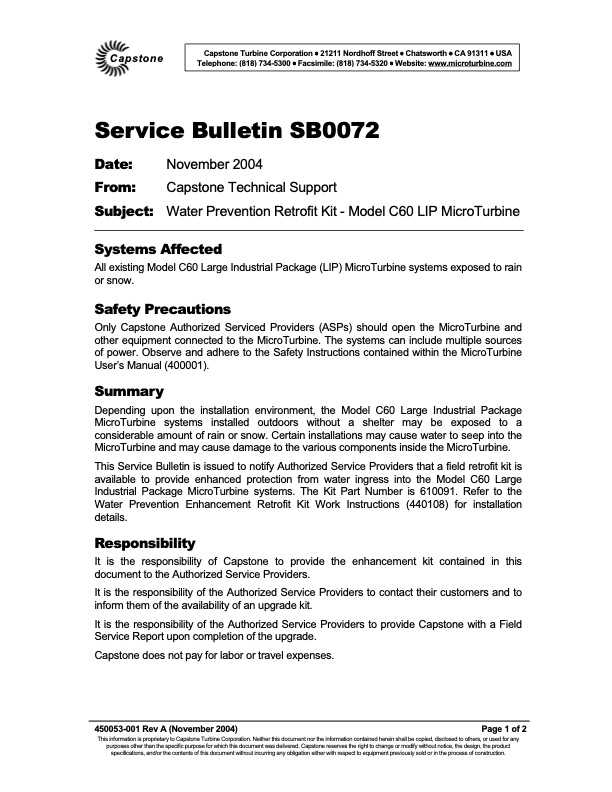

Capstone Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com Service Bulletin SB0072 Date: From: Subject: November 2004 Capstone Technical Support Water Prevention Retrofit Kit - Model C60 LIP MicroTurbine Systems Affected All existing Model C60 Large Industrial Package (LIP) MicroTurbine systems exposed to rain or snow. Safety Precautions Only Capstone Authorized Serviced Providers (ASPs) should open the MicroTurbine and other equipment connected to the MicroTurbine. The systems can include multiple sources of power. Observe and adhere to the Safety Instructions contained within the MicroTurbine User’s Manual (400001). Summary Depending upon the installation environment, the Model C60 Large Industrial Package MicroTurbine systems installed outdoors without a shelter may be exposed to a considerable amount of rain or snow. Certain installations may cause water to seep into the MicroTurbine and may cause damage to the various components inside the MicroTurbine. This Service Bulletin is issued to notify Authorized Service Providers that a field retrofit kit is available to provide enhanced protection from water ingress into the Model C60 Large Industrial Package MicroTurbine systems. The Kit Part Number is 610091. Refer to the Water Prevention Enhancement Retrofit Kit Work Instructions (440108) for installation details. Responsibility It is the responsibility of Capstone to provide the enhancement kit contained in this document to the Authorized Service Providers. It is the responsibility of the Authorized Service Providers to contact their customers and to inform them of the availability of an upgrade kit. It is the responsibility of the Authorized Service Providers to provide Capstone with a Field Service Report upon completion of the upgrade. Capstone does not pay for labor or travel expenses. 450053-001 Rev A (November 2004) Page 1 of 2 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Water Prevention Retrofit Kit - Model C60 LIP MicroTurbine
PDF Search Title:
Water Prevention Retrofit Kit - Model C60 LIP MicroTurbineOriginal File Name Searched:
SB0072_C60_Water_Prevention_Retrofit_Kit.pdfDIY PDF Search: Google It | Yahoo | Bing
