Text from PDF Page: 002

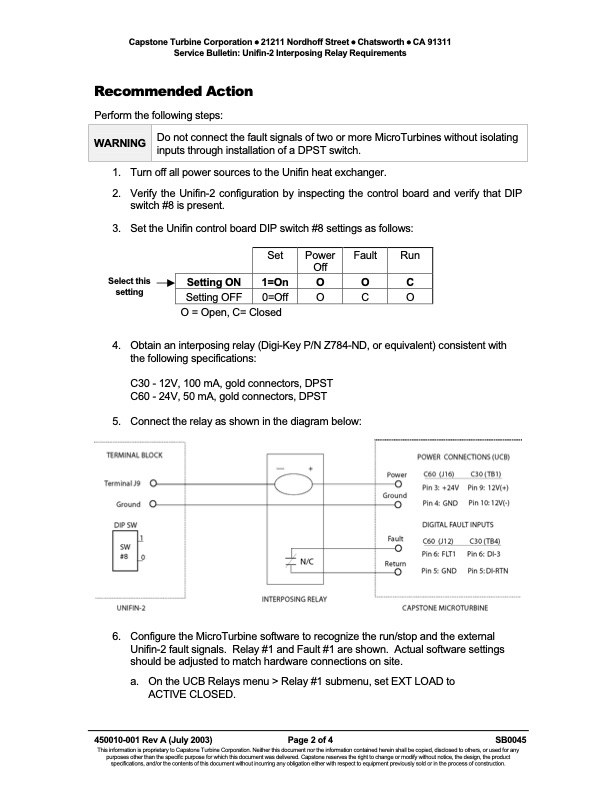

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Bulletin: Unifin-2 Interposing Relay Requirements Recommended Action Perform the following steps: Do not connect the fault signals of two or more MicroTurbines without isolating inputs through installation of a DPST switch. 1. Turn off all power sources to the Unifin heat exchanger. 2. Verify the Unifin-2 configuration by inspecting the control board and verify that DIP switch #8 is present. 3. Set the Unifin control board DIP switch #8 settings as follows: WARNING Select this setting Setting ON Setting OFF Set Power Fault Run Off 1=On O O C 0=Off O C O O = Open, C= Closed 4. Obtain an interposing relay (Digi-Key P/N Z784-ND, or equivalent) consistent with the following specifications: C30 - 12V, 100 mA, gold connectors, DPST C60 - 24V, 50 mA, gold connectors, DPST 5. Connect the relay as shown in the diagram below: 6. Configure the MicroTurbine software to recognize the run/stop and the external Unifin-2 fault signals. Relay #1 and Fault #1 are shown. Actual software settings should be adjusted to match hardware connections on site. a. On the UCB Relays menu > Relay #1 submenu, set EXT LOAD to ACTIVE CLOSED. 450010-001 Rev A (July 2003) Page 2 of 4 SB0045 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Unifin-2 Interposing Relay Requirements
