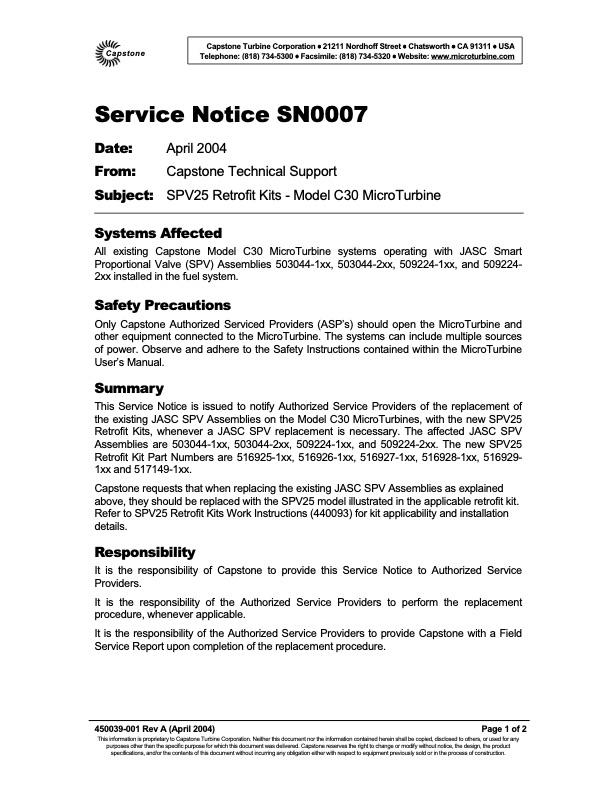

Text from PDF Page: 001
Capstone Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com Service Notice SN0007 Date: From: Subject: April 2004 Capstone Technical Support SPV25 Retrofit Kits - Model C30 MicroTurbine Systems Affected All existing Capstone Model C30 MicroTurbine systems operating with JASC Smart Proportional Valve (SPV) Assemblies 503044-1xx, 503044-2xx, 509224-1xx, and 509224- 2xx installed in the fuel system. Safety Precautions Only Capstone Authorized Serviced Providers (ASP’s) should open the MicroTurbine and other equipment connected to the MicroTurbine. The systems can include multiple sources of power. Observe and adhere to the Safety Instructions contained within the MicroTurbine User’s Manual. Summary This Service Notice is issued to notify Authorized Service Providers of the replacement of the existing JASC SPV Assemblies on the Model C30 MicroTurbines, with the new SPV25 Retrofit Kits, whenever a JASC SPV replacement is necessary. The affected JASC SPV Assemblies are 503044-1xx, 503044-2xx, 509224-1xx, and 509224-2xx. The new SPV25 Retrofit Kit Part Numbers are 516925-1xx, 516926-1xx, 516927-1xx, 516928-1xx, 516929- 1xx and 517149-1xx. Capstone requests that when replacing the existing JASC SPV Assemblies as explained above, they should be replaced with the SPV25 model illustrated in the applicable retrofit kit. Refer to SPV25 Retrofit Kits Work Instructions (440093) for kit applicability and installation details. Responsibility It is the responsibility of Capstone to provide this Service Notice to Authorized Service Providers. It is the responsibility of the Authorized Service Providers to perform the replacement procedure, whenever applicable. It is the responsibility of the Authorized Service Providers to provide Capstone with a Field Service Report upon completion of the replacement procedure. 450039-001 Rev A (April 2004) Page 1 of 2 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | SPV25 Retrofit Kits - Model C30 MicroTurbine
PDF Search Title:
SPV25 Retrofit Kits - Model C30 MicroTurbineOriginal File Name Searched:
SN0007_C30_SPV25_Retrofit_Kits.pdfDIY PDF Search: Google It | Yahoo | Bing
