PDF Publication Title:
Text from PDF Page: 002

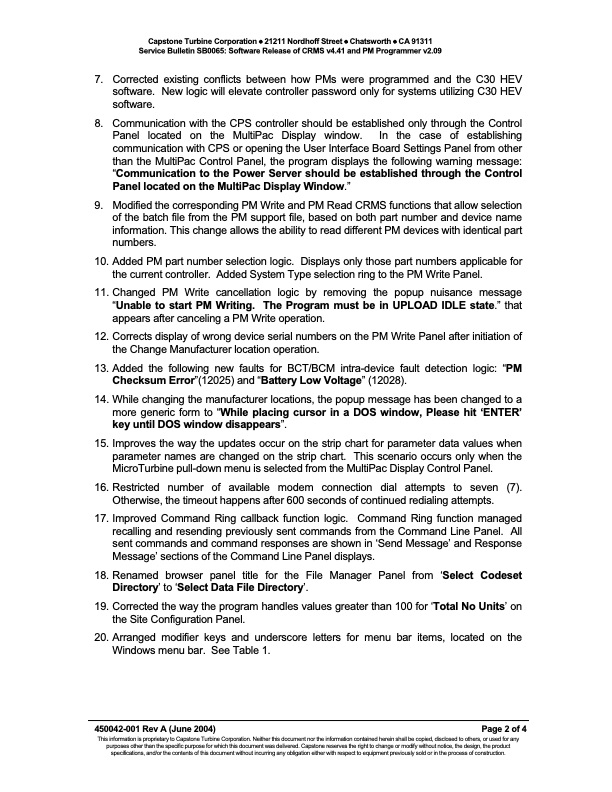

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Bulletin SB0065: Software Release of CRMS v4.41 and PM Programmer v2.09 7. Corrected existing conflicts between how PMs were programmed and the C30 HEV software. New logic will elevate controller password only for systems utilizing C30 HEV software. 8. Communication with the CPS controller should be established only through the Control Panel located on the MultiPac Display window. In the case of establishing communication with CPS or opening the User Interface Board Settings Panel from other than the MultiPac Control Panel, the program displays the following warning message: “Communication to the Power Server should be established through the Control Panel located on the MultiPac Display Window.” 9. Modified the corresponding PM Write and PM Read CRMS functions that allow selection of the batch file from the PM support file, based on both part number and device name information. This change allows the ability to read different PM devices with identical part numbers. 10. Added PM part number selection logic. Displays only those part numbers applicable for the current controller. Added System Type selection ring to the PM Write Panel. 11. Changed PM Write cancellation logic by removing the popup nuisance message “Unable to start PM Writing. The Program must be in UPLOAD IDLE state.” that appears after canceling a PM Write operation. 12. Corrects display of wrong device serial numbers on the PM Write Panel after initiation of the Change Manufacturer location operation. 13. Added the following new faults for BCT/BCM intra-device fault detection logic: “PM Checksum Error”(12025) and “Battery Low Voltage” (12028). 14. While changing the manufacturer locations, the popup message has been changed to a more generic form to “While placing cursor in a DOS window, Please hit ‘ENTER’ key until DOS window disappears”. 15. Improves the way the updates occur on the strip chart for parameter data values when parameter names are changed on the strip chart. This scenario occurs only when the MicroTurbine pull-down menu is selected from the MultiPac Display Control Panel. 16. Restricted number of available modem connection dial attempts to seven (7). Otherwise, the timeout happens after 600 seconds of continued redialing attempts. 17. Improved Command Ring callback function logic. Command Ring function managed recalling and resending previously sent commands from the Command Line Panel. All sent commands and command responses are shown in ‘Send Message’ and Response Message’ sections of the Command Line Panel displays. 18. Renamed browser panel title for the File Manager Panel from ‘Select Codeset Directory’ to ‘Select Data File Directory’. 19. Corrected the way the program handles values greater than 100 for ‘Total No Units’ on the Site Configuration Panel. 20. Arranged modifier keys and underscore letters for menu bar items, located on the Windows menu bar. See Table 1. 450042-001 Rev A (June 2004) Page 2 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Software Release of CRMS v4.41 All Model C30 and C60 MicroTurbine users of Capstone CRMS software.
PDF Search Title:
Software Release of CRMS v4.41 All Model C30 and C60 MicroTurbine users of Capstone CRMS software.Original File Name Searched:
SB0065_CRMSV441.pdfDIY PDF Search: Google It | Yahoo | Bing
