PDF Publication Title:
Text from PDF Page: 001

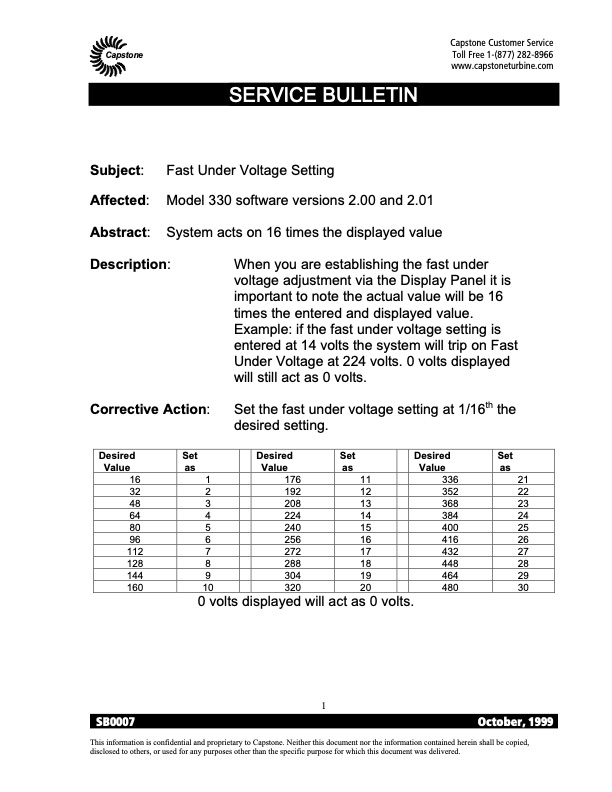

Capstone Subject: Affected: Abstract: Description: Capstone Customer Service Toll Free 1-(877) 282-8966 www.capstoneturbine.com Corrective Action: Desired Set Value as 16 1 32 2 48 3 64 4 80 5 96 6 When you are establishing the fast under voltage adjustment via the Display Panel it is important to note the actual value will be 16 times the entered and displayed value. Example: if the fast under voltage setting is entered at 14 volts the system will trip on Fast Under Voltage at 224 volts. 0 volts displayed will still act as 0 volts. Set the fast under voltage setting at 1/16th the desired setting. Desired Set Desired Set Value as Value as 176 11 336 21 192 12 352 22 208 13 368 23 224 14 384 24 240 15 400 25 256 16 416 26 272 17 432 27 288 18 448 28 304 19 464 29 SERVICE BULLETIN Fast Under Voltage Setting Model 330 software versions 2.00 and 2.01 System acts on 16 times the displayed value 112 7 128 8 144 9 160 10 320 20 480 30 0 volts displayed will act as 0 volts. 1 SB0007 October, 1999 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Set the fast under voltage setting Model 330 software version 2.00 and 2.01
PDF Search Title:
Set the fast under voltage setting Model 330 software version 2.00 and 2.01Original File Name Searched:
sb0007.pdfDIY PDF Search: Google It | Yahoo | Bing
