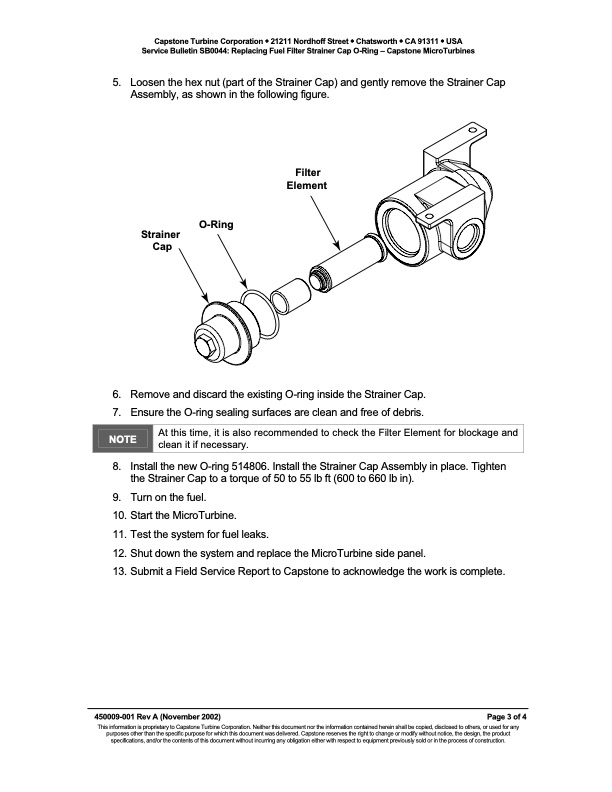

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0044: Replacing Fuel Filter Strainer Cap O-Ring – Capstone MicroTurbines 5. Loosen the hex nut (part of the Strainer Cap) and gently remove the Strainer Cap Assembly, as shown in the following figure. Filter Element O-Ring Strainer Cap 6. Remove and discard the existing O-ring inside the Strainer Cap. 7. Ensure the O-ring sealing surfaces are clean and free of debris. NOTE At this time, it is also recommended to check the Filter Element for blockage and clean it if necessary. 8. Install the new O-ring 514806. Install the Strainer Cap Assembly in place. Tighten the Strainer Cap to a torque of 50 to 55 lb ft (600 to 660 lb in). 9. Turn on the fuel. 10. Start the MicroTurbine. 11. Test the system for fuel leaks. 12. Shut down the system and replace the MicroTurbine side panel. 13. Submit a Field Service Report to Capstone to acknowledge the work is complete. 450009-001 Rev A (November 2002) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Replacing Fuel Filter Strainer Cap O-Ring Capstone MicroTurbines
