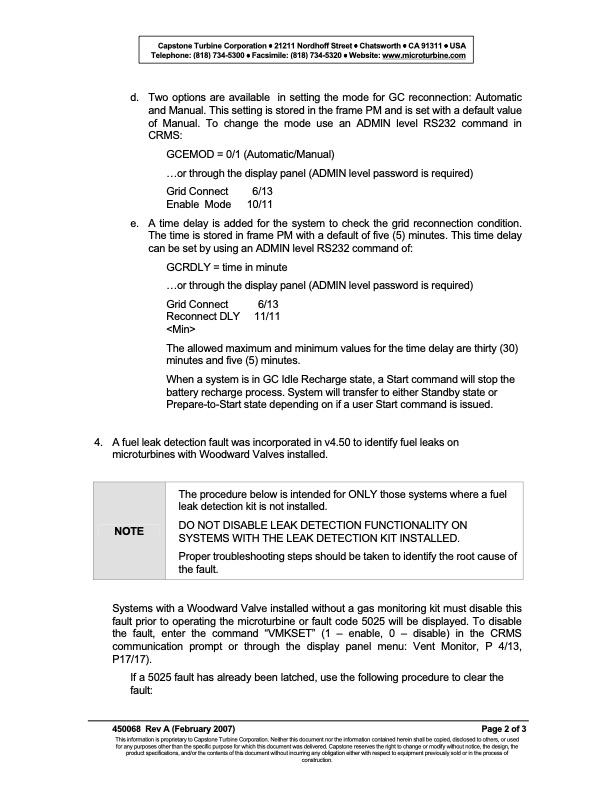

Text from PDF Page: 002

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com d. Two options are available in setting the mode for GC reconnection: Automatic and Manual. This setting is stored in the frame PM and is set with a default value of Manual. To change the mode use an ADMIN level RS232 command in CRMS: GCEMOD = 0/1 (Automatic/Manual) ...or through the display panel (ADMIN level password is required) Grid Connect 6/13 Enable Mode 10/11 e. A time delay is added for the system to check the grid reconnection condition. The time is stored in frame PM with a default of five (5) minutes. This time delay can be set by using an ADMIN level RS232 command of: GCRDLY = time in minute ...or through the display panel (ADMIN level password is required) Grid Connect 6/13 Reconnect DLY 11/11 The allowed maximum and minimum values for the time delay are thirty (30) minutes and five (5) minutes. When a system is in GC Idle Recharge state, a Start command will stop the battery recharge process. System will transfer to either Standby state or Prepare-to-Start state depending on if a user Start command is issued. 4. A fuel leak detection fault was incorporated in v4.50 to identify fuel leaks on microturbines with Woodward Valves installed. NOTE The procedure below is intended for ONLY those systems where a fuel leak detection kit is not installed. DO NOT DISABLE LEAK DETECTION FUNCTIONALITY ON SYSTEMS WITH THE LEAK DETECTION KIT INSTALLED. Proper troubleshooting steps should be taken to identify the root cause of the fault. Systems with a Woodward Valve installed without a gas monitoring kit must disable this fault prior to operating the microturbine or fault code 5025 will be displayed. To disable the fault, enter the command “VMKSET” (1 – enable, 0 – disable) in the CRMS communication prompt or through the display panel menu: Vent Monitor, P 4/13, P17/17). If a 5025 fault has already been latched, use the following procedure to clear the fault: 450068 Rev A (February 2007) Page 2 of 3 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.

PDF Image | Model C6x v4.50 Rev. K Software Release
