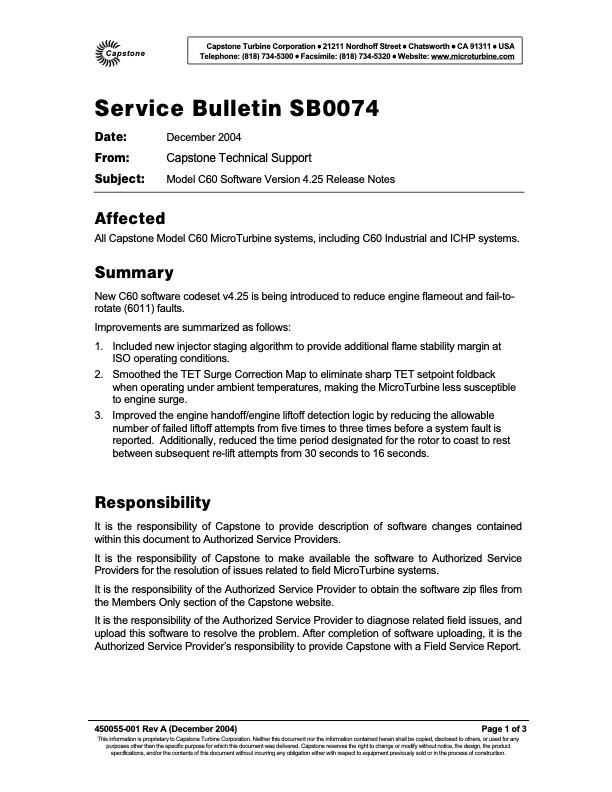

Capstone Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com Service Bulletin SB0074 Date: From: Subject: Affected All Capstone Model C60 MicroTurbine systems, including C60 Industrial and ICHP systems. Summary New C60 software codeset v4.25 is being introduced to reduce engine flameout and fail-to- rotate (6011) faults. Improvements are summarized as follows: 1. Included new injector staging algorithm to provide additional flame stability margin at ISO operating conditions. 2. Smoothed the TET Surge Correction Map to eliminate sharp TET setpoint foldback when operating under ambient temperatures, making the MicroTurbine less susceptible to engine surge. 3. Improved the engine handoff/engine liftoff detection logic by reducing the allowable number of failed liftoff attempts from five times to three times before a system fault is reported. Additionally, reduced the time period designated for the rotor to coast to rest between subsequent re-lift attempts from 30 seconds to 16 seconds. Responsibility It is the responsibility of Capstone to provide description of software changes contained within this document to Authorized Service Providers. It is the responsibility of Capstone to make available the software to Authorized Service Providers for the resolution of issues related to field MicroTurbine systems. It is the responsibility of the Authorized Service Provider to obtain the software zip files from the Members Only section of the Capstone website. It is the responsibility of the Authorized Service Provider to diagnose related field issues, and upload this software to resolve the problem. After completion of software uploading, it is the Authorized Service Provider’s responsibility to provide Capstone with a Field Service Report. 450055-001 Rev A (December 2004) Page 1 of 3 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. December 2004 Capstone Technical Support Model C60 Software Version 4.25 Release NotesPDF Image | Model C60 Software Version 4.25 Release Notes
