PDF Publication Title:
Text from PDF Page: 002

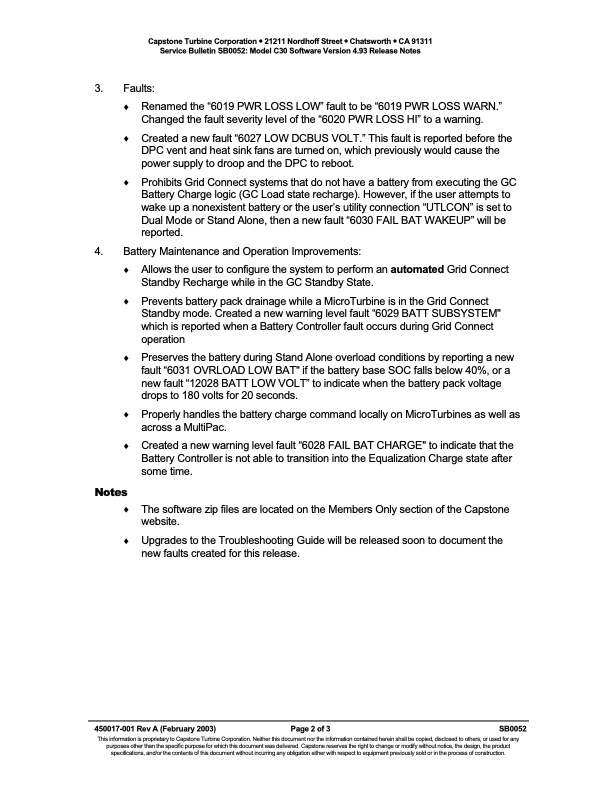

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Bulletin SB0052: Model C30 Software Version 4.93 Release Notes 3. Faults: ♦ Renamed the “6019 PWR LOSS LOW” fault to be “6019 PWR LOSS WARN.” Changed the fault severity level of the “6020 PWR LOSS HI” to a warning. ♦ Created a new fault “6027 LOW DCBUS VOLT.” This fault is reported before the DPC vent and heat sink fans are turned on, which previously would cause the power supply to droop and the DPC to reboot. ♦ Prohibits Grid Connect systems that do not have a battery from executing the GC Battery Charge logic (GC Load state recharge). However, if the user attempts to wake up a nonexistent battery or the user’s utility connection “UTLCON” is set to Dual Mode or Stand Alone, then a new fault “6030 FAIL BAT WAKEUP” will be reported. 4. Battery Maintenance and Operation Improvements: ♦ Allows the user to configure the system to perform an automated Grid Connect Standby Recharge while in the GC Standby State. ♦ Prevents battery pack drainage while a MicroTurbine is in the Grid Connect Standby mode. Created a new warning level fault “6029 BATT SUBSYSTEM" which is reported when a Battery Controller fault occurs during Grid Connect operation ♦ Preserves the battery during Stand Alone overload conditions by reporting a new fault “6031 OVRLOAD LOW BAT" if the battery base SOC falls below 40%, or a new fault “12028 BATT LOW VOLT” to indicate when the battery pack voltage drops to 180 volts for 20 seconds. ♦ Properly handles the battery charge command locally on MicroTurbines as well as across a MultiPac. ♦ Created a new warning level fault “6028 FAIL BAT CHARGE" to indicate that the Battery Controller is not able to transition into the Equalization Charge state after some time. Notes ♦ The software zip files are located on the Members Only section of the Capstone website. ♦ Upgrades to the Troubleshooting Guide will be released soon to document the new faults created for this release. 450017-001 Rev A (February 2003) Page 2 of 3 SB0052 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Model C30 Software Version 4.93 Release Notes
PDF Search Title:
Model C30 Software Version 4.93 Release NotesOriginal File Name Searched:
SB0052_ModelC30SoftwareVersion493 Release Notes.pdfDIY PDF Search: Google It | Yahoo | Bing
