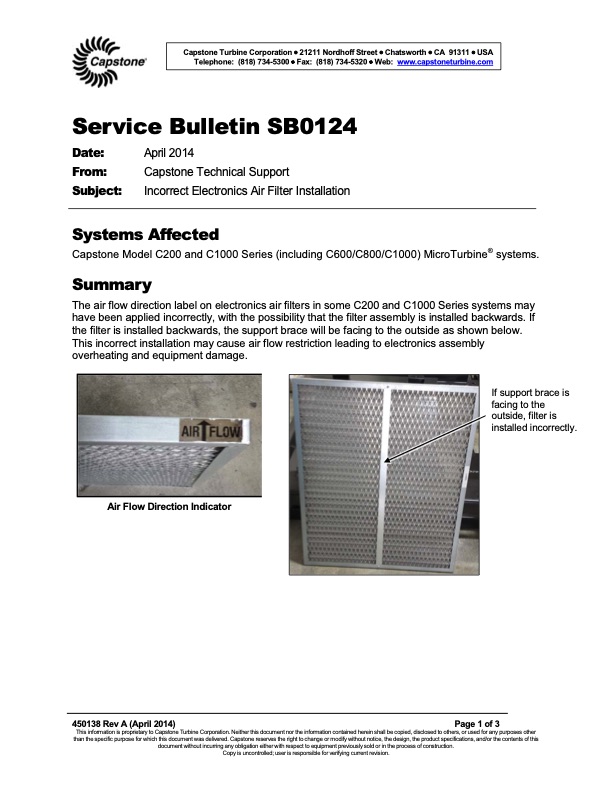

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Fax: (818) 734-5320 • Web: www.capstoneturbine.com Service Bulletin SB0124 Date: From: Subject: April 2014 Capstone Technical Support Incorrect Electronics Air Filter Installation Systems Affected Capstone Model C200 and C1000 Series (including C600/C800/C1000) MicroTurbine® systems. Summary The air flow direction label on electronics air filters in some C200 and C1000 Series systems may have been applied incorrectly, with the possibility that the filter assembly is installed backwards. If the filter is installed backwards, the support brace will be facing to the outside as shown below. This incorrect installation may cause air flow restriction leading to electronics assembly overheating and equipment damage. Air Flow Direction Indicator If support brace is facing to the outside, filter is installed incorrectly. 450138 Rev A (April 2014) Page 1 of 3 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Copy is uncontrolled; user is responsible for verifying current revision.PDF Image | Incorrect Electronics Air Filter Installation
