PDF Publication Title:
Text from PDF Page: 002

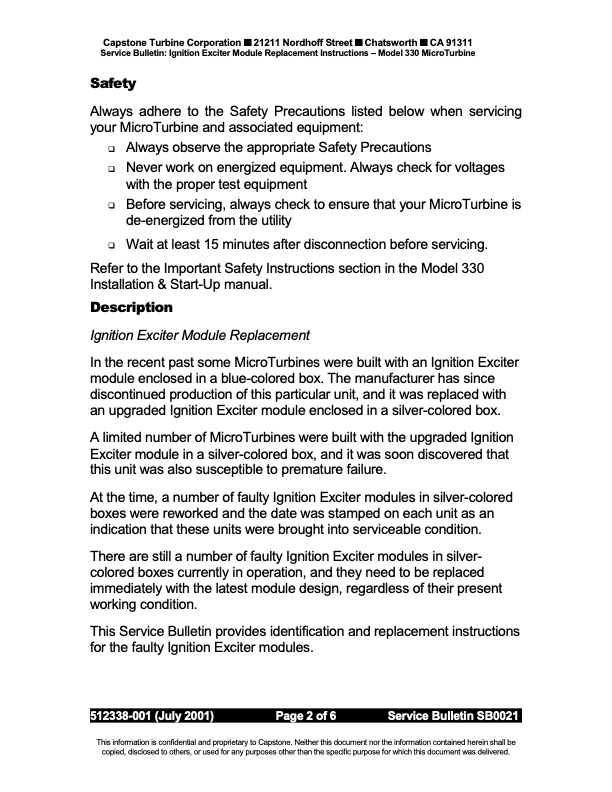

Capstone Turbine Corporation ■ 21211 Nordhoff Street ■ Chatsworth ■ CA 91311 Service Bulletin: Ignition Exciter Module Replacement Instructions – Model 330 MicroTurbine Safety Always adhere to the Safety Precautions listed below when servicing your MicroTurbine and associated equipment: Always observe the appropriate Safety Precautions Never work on energized equipment. Always check for voltages with the proper test equipment Before servicing, always check to ensure that your MicroTurbine is de-energized from the utility Wait at least 15 minutes after disconnection before servicing. Refer to the Important Safety Instructions section in the Model 330 Installation & Start-Up manual. Description Ignition Exciter Module Replacement In the recent past some MicroTurbines were built with an Ignition Exciter module enclosed in a blue-colored box. The manufacturer has since discontinued production of this particular unit, and it was replaced with an upgraded Ignition Exciter module enclosed in a silver-colored box. A limited number of MicroTurbines were built with the upgraded Ignition Exciter module in a silver-colored box, and it was soon discovered that this unit was also susceptible to premature failure. At the time, a number of faulty Ignition Exciter modules in silver-colored boxes were reworked and the date was stamped on each unit as an indication that these units were brought into serviceable condition. There are still a number of faulty Ignition Exciter modules in silver- colored boxes currently in operation, and they need to be replaced immediately with the latest module design, regardless of their present working condition. This Service Bulletin provides identification and replacement instructions for the faulty Ignition Exciter modules. 512338-001 (July 2001) Page 2 of 6 Service Bulletin SB0021. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Ignition Exciter Module Replacement and Ignition Cable Security Inspection – Capstone Model 330 MicroTurbine
PDF Search Title:
Ignition Exciter Module Replacement and Ignition Cable Security Inspection – Capstone Model 330 MicroTurbineOriginal File Name Searched:
sb0021.pdfDIY PDF Search: Google It | Yahoo | Bing
