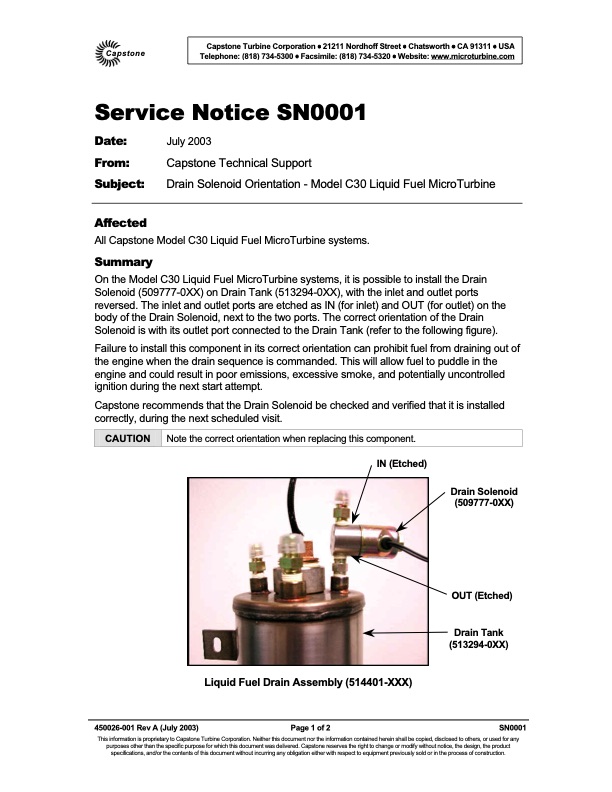

Capstone Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com Service Notice SN0001 Date: From: Subject: Affected All Capstone Model C30 Liquid Fuel MicroTurbine systems. Summary On the Model C30 Liquid Fuel MicroTurbine systems, it is possible to install the Drain Solenoid (509777-0XX) on Drain Tank (513294-0XX), with the inlet and outlet ports reversed. The inlet and outlet ports are etched as IN (for inlet) and OUT (for outlet) on the body of the Drain Solenoid, next to the two ports. The correct orientation of the Drain Solenoid is with its outlet port connected to the Drain Tank (refer to the following figure). Failure to install this component in its correct orientation can prohibit fuel from draining out of the engine when the drain sequence is commanded. This will allow fuel to puddle in the engine and could result in poor emissions, excessive smoke, and potentially uncontrolled ignition during the next start attempt. Capstone recommends that the Drain Solenoid be checked and verified that it is installed correctly, during the next scheduled visit. July 2003 Capstone Technical Support Drain Solenoid Orientation - Model C30 Liquid Fuel MicroTurbine CAUTION Note the correct orientation when replacing this component. IN (Etched) Liquid Fuel Drain Assembly (514401-XXX) Page 1 of 2 450026-001 Rev A (July 2003) Drain Solenoid (509777-0XX) OUT (Etched) Drain Tank (513294-0XX) SN0001 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Drain Solenoid Orientatin - Model C30 Liquid Fuel MicroTurbine systems.
