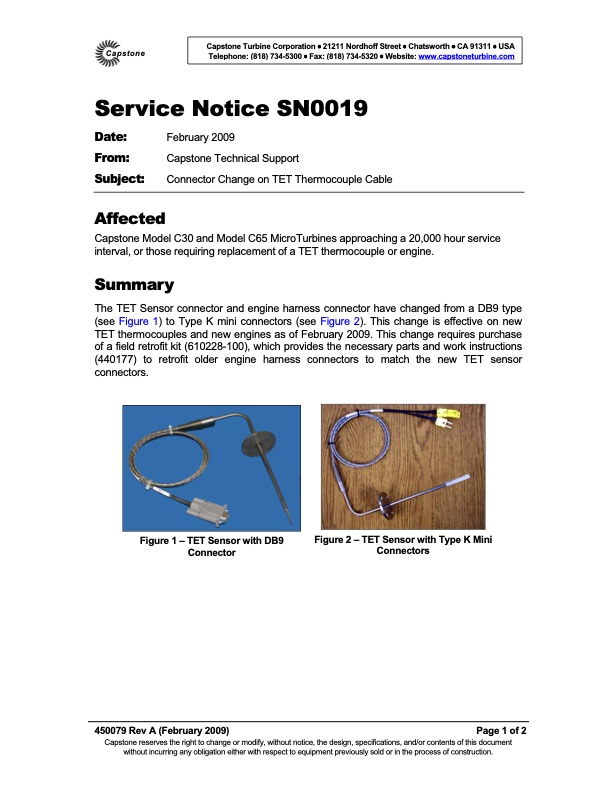

Capstone Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Telephone: (818) 734-5300 Fax: (818) 734-5320 Website: www.capstoneturbine.com Service Notice SN0019 Date: From: Subject: Affected Capstone Model C30 and Model C65 MicroTurbines approaching a 20,000 hour service interval, or those requiring replacement of a TET thermocouple or engine. Summary The TET Sensor connector and engine harness connector have changed from a DB9 type (see Figure 1) to Type K mini connectors (see Figure 2). This change is effective on new TET thermocouples and new engines as of February 2009. This change requires purchase of a field retrofit kit (610228-100), which provides the necessary parts and work instructions (440177) to retrofit older engine harness connectors to match the new TET sensor connectors. February 2009 Capstone Technical Support Connector Change on TET Thermocouple Cable Figure 1 – TET Sensor with DB9 Connector Figure 2 – TET Sensor with Type K Mini Connectors 450079 Rev A (February 2009) Page 1 of 2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Connector Change on TET Themocouple Cable
