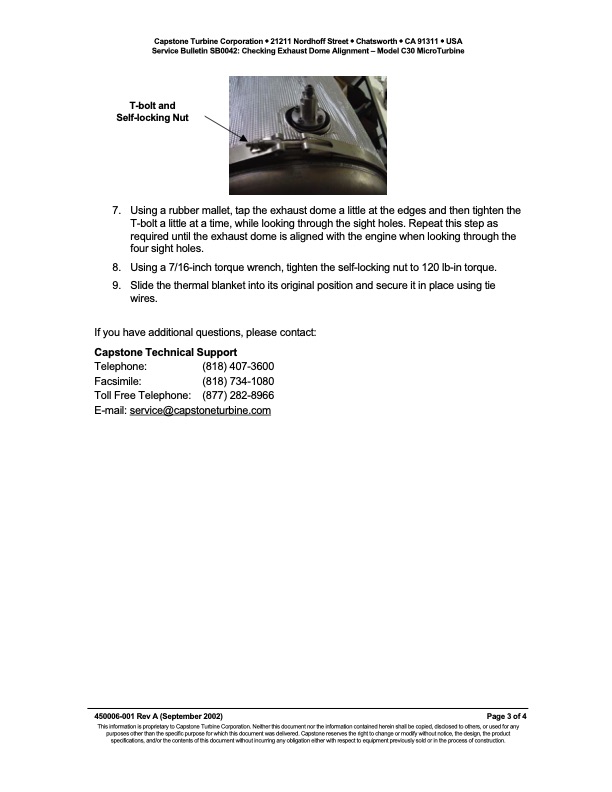

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0042: Checking Exhaust Dome Alignment – Model C30 MicroTurbine 7. Using a rubber mallet, tap the exhaust dome a little at the edges and then tighten the T-bolt a little at a time, while looking through the sight holes. Repeat this step as required until the exhaust dome is aligned with the engine when looking through the four sight holes. 8. Using a 7/16-inch torque wrench, tighten the self-locking nut to 120 lb-in torque. 9. Slide the thermal blanket into its original position and secure it in place using tie wires. T-bolt and Self-locking Nut If you have additional questions, please contact: Capstone Technical Support Telephone: Facsimile: Toll Free Telephone: E-mail: service@capstoneturbine.com (818) 407-3600 (818) 734-1080 (877) 282-8966 450006-001 Rev A (September 2002) Page 3 of 4 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Checking Exhaust Dome Alignment Model C30 MicroTurbine
