Text from PDF Page: 002

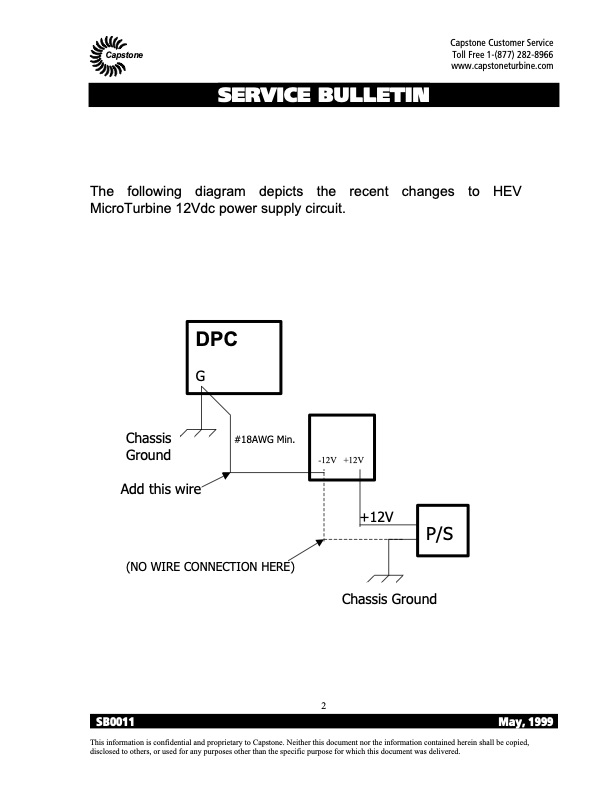

Capstone Capstone Customer Service Toll Free 1-(877) 282-8966 www.capstoneturbine.com SERVICE BULLETIN The following diagram depicts the recent changes to HEV MicroTurbine 12Vdc power supply circuit. DPC G Chassis #18AWG Min. Ground Add this wire (NO WIRE CONNECTION HERE) +12V Chassis Ground 2 SB0011 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. -12V +12V P/S May, 1999
