Text from PDF Page: 005

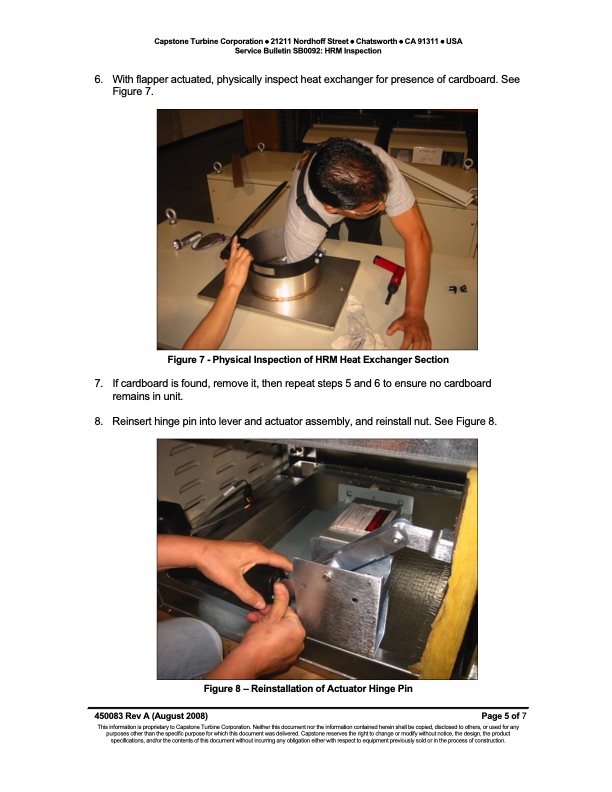

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0092: HRM Inspection 6. With flapper actuated, physically inspect heat exchanger for presence of cardboard. See Figure 7. Figure 7 - Physical Inspection of HRM Heat Exchanger Section 7. If cardboard is found, remove it, then repeat steps 5 and 6 to ensure no cardboard remains in unit. 8. Reinsert hinge pin into lever and actuator assembly, and reinstall nut. See Figure 8. Figure 8 – Reinstallation of Actuator Hinge Pin 450083 Rev A (August 2008) Page 5 of 7 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
