PDF Publication Title:
Text from PDF Page: 001

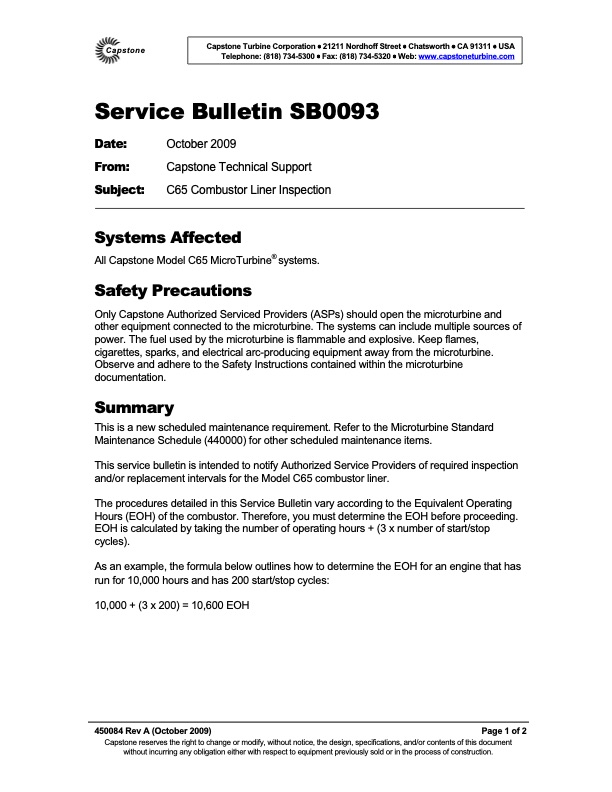

Capstone Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA Telephone: (818) 734-5300 Fax: (818) 734-5320 Web: www.capstoneturbine.com Service Bulletin SB0093 Date: From: Subject: October 2009 Capstone Technical Support C65 Combustor Liner Inspection Systems Affected All Capstone Model C65 MicroTurbine® systems. Safety Precautions Only Capstone Authorized Serviced Providers (ASPs) should open the microturbine and other equipment connected to the microturbine. The systems can include multiple sources of power. The fuel used by the microturbine is flammable and explosive. Keep flames, cigarettes, sparks, and electrical arc-producing equipment away from the microturbine. Observe and adhere to the Safety Instructions contained within the microturbine documentation. Summary This is a new scheduled maintenance requirement. Refer to the Microturbine Standard Maintenance Schedule (440000) for other scheduled maintenance items. This service bulletin is intended to notify Authorized Service Providers of required inspection and/or replacement intervals for the Model C65 combustor liner. The procedures detailed in this Service Bulletin vary according to the Equivalent Operating Hours (EOH) of the combustor. Therefore, you must determine the EOH before proceeding. EOH is calculated by taking the number of operating hours + (3 x number of start/stop cycles). As an example, the formula below outlines how to determine the EOH for an engine that has run for 10,000 hours and has 200 start/stop cycles: 10,000 + (3 x 200) = 10,600 EOH 450084 Rev A (October 2009) Page 1 of 2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone Technical Support C65 Combustor Liner Inspection
PDF Search Title:
Capstone Technical Support C65 Combustor Liner InspectionOriginal File Name Searched:
SB0093_C65_Combustor_Liner_Replacement.pdfDIY PDF Search: Google It | Yahoo | Bing
