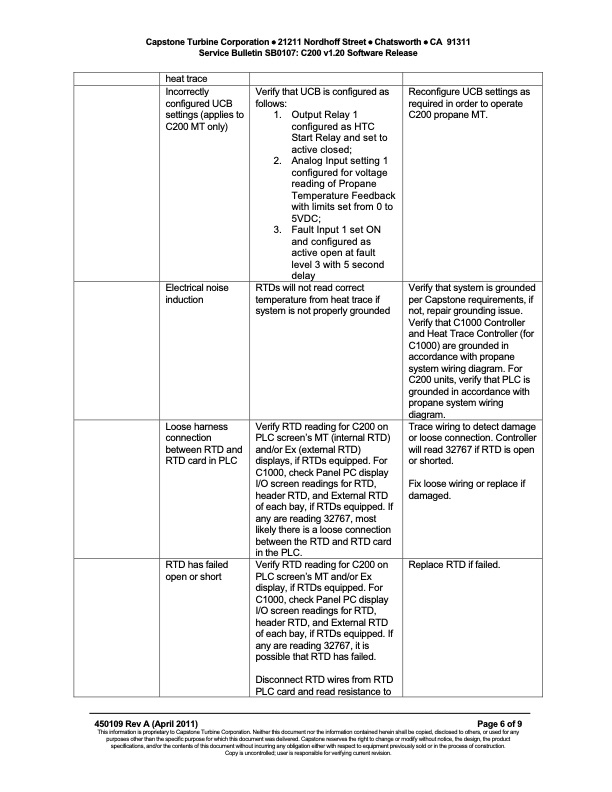

Text from PDF Page: 006
Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 Service Bulletin SB0107: C200 v1.20 Software Release heat trace Incorrectly configured UCB settings (applies to C200 MT only) Verify that UCB is configured as follows: 1. Output Relay 1 configured as HTC Start Relay and set to active closed; 2. Analog Input setting 1 configured for voltage reading of Propane Temperature Feedback with limits set from 0 to 5VDC; 3. Fault Input 1 set ON and configured as active open at fault level 3 with 5 second delay Reconfigure UCB settings as required in order to operate C200 propane MT. Electrical noise induction RTDs will not read correct temperature from heat trace if system is not properly grounded Verify that system is grounded per Capstone requirements, if not, repair grounding issue. Verify that C1000 Controller and Heat Trace Controller (for C1000) are grounded in accordance with propane system wiring diagram. For C200 units, verify that PLC is grounded in accordance with propane system wiring diagram. Loose harness connection between RTD and RTD card in PLC Verify RTD reading for C200 on PLC screen’s MT (internal RTD) and/or Ex (external RTD) displays, if RTDs equipped. For C1000, check Panel PC display I/O screen readings for RTD, header RTD, and External RTD of each bay, if RTDs equipped. If any are reading 32767, most likely there is a loose connection between the RTD and RTD card in the PLC. Trace wiring to detect damage or loose connection. Controller will read 32767 if RTD is open or shorted. Fix loose wiring or replace if damaged. RTD has failed open or short Verify RTD reading for C200 on PLC screen’s MT and/or Ex display, if RTDs equipped. For C1000, check Panel PC display I/O screen readings for RTD, header RTD, and External RTD of each bay, if RTDs equipped. If any are reading 32767, it is possible that RTD has failed. Disconnect RTD wires from RTD PLC card and read resistance to Replace RTD if failed. 450109 Rev A (April 2011) Page 6 of 9 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Copy is uncontrolled; user is responsible for verifying current revision.PDF Image | Capstone Technical Support C200 v1.20 Software Release
