PDF Publication Title:
Text from PDF Page: 001

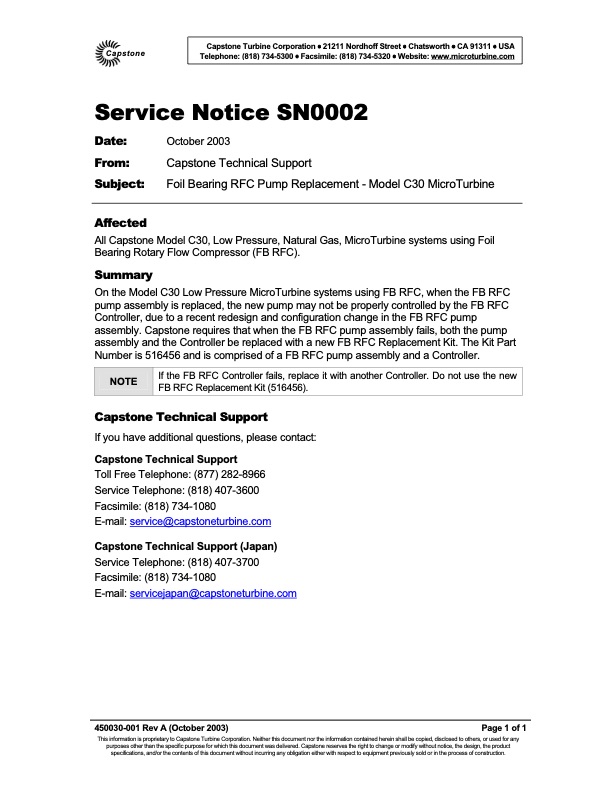

Capstone Service Notice SN0002 Date: From: Subject: Affected All Capstone Model C30, Low Pressure, Natural Gas, MicroTurbine systems using Foil Bearing Rotary Flow Compressor (FB RFC). Summary On the Model C30 Low Pressure MicroTurbine systems using FB RFC, when the FB RFC pump assembly is replaced, the new pump may not be properly controlled by the FB RFC Controller, due to a recent redesign and configuration change in the FB RFC pump assembly. Capstone requires that when the FB RFC pump assembly fails, both the pump assembly and the Controller be replaced with a new FB RFC Replacement Kit. The Kit Part Number is 516456 and is comprised of a FB RFC pump assembly and a Controller. October 2003 Capstone Technical Support Foil Bearing RFC Pump Replacement - Model C30 MicroTurbine NOTE If the FB RFC Controller fails, replace it with another Controller. Do not use the new FB RFC Replacement Kit (516456). Capstone Technical Support If you have additional questions, please contact: Capstone Technical Support Toll Free Telephone: (877) 282-8966 Service Telephone: (818) 407-3600 Facsimile: (818) 734-1080 E-mail: service@capstoneturbine.com Capstone Technical Support (Japan) Service Telephone: (818) 407-3700 Facsimile: (818) 734-1080 E-mail: servicejapan@capstoneturbine.com 450030-001 Rev A (October 2003) Page 1 of 1 Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Capstone Model C30, Low Pressure, Natural Gas, MicroTurbine systems using Foil Bearing Rotary Flow Compressor (FB RFC).N0002
PDF Search Title:
Capstone Model C30, Low Pressure, Natural Gas, MicroTurbine systems using Foil Bearing Rotary Flow Compressor (FB RFC).N0002Original File Name Searched:
SN0002_C30 FB RFC Pump Replacement.pdfDIY PDF Search: Google It | Yahoo | Bing
