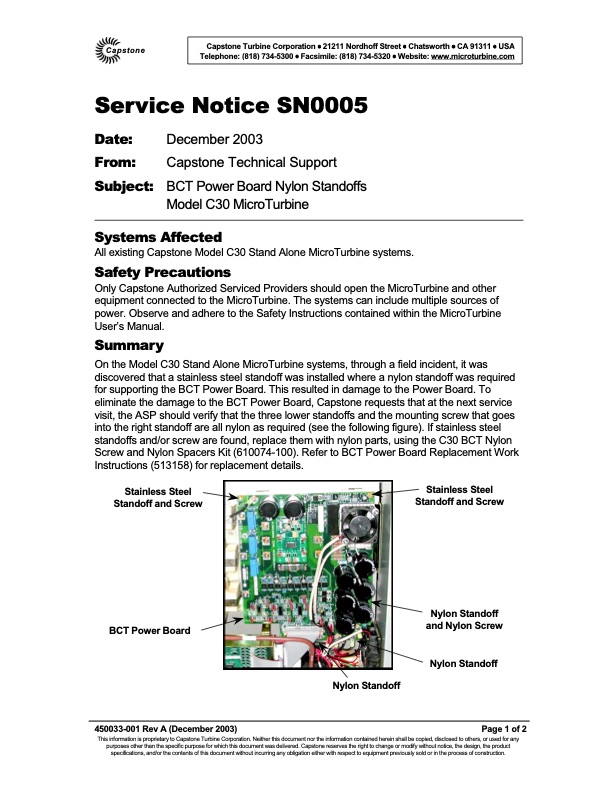

Capstone Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Telephone: (818) 734-5300 • Facsimile: (818) 734-5320 • Website: www.microturbine.com Service Notice SN0005 Date: From: Subject: December 2003 Capstone Technical Support BCT Power Board Nylon Standoffs Model C30 MicroTurbine Systems Affected All existing Capstone Model C30 Stand Alone MicroTurbine systems. Safety Precautions Only Capstone Authorized Serviced Providers should open the MicroTurbine and other equipment connected to the MicroTurbine. The systems can include multiple sources of power. Observe and adhere to the Safety Instructions contained within the MicroTurbine User’s Manual. Summary On the Model C30 Stand Alone MicroTurbine systems, through a field incident, it was discovered that a stainless steel standoff was installed where a nylon standoff was required for supporting the BCT Power Board. This resulted in damage to the Power Board. To eliminate the damage to the BCT Power Board, Capstone requests that at the next service visit, the ASP should verify that the three lower standoffs and the mounting screw that goes into the right standoff are all nylon as required (see the following figure). If stainless steel standoffs and/or screw are found, replace them with nylon parts, using the C30 BCT Nylon Screw and Nylon Spacers Kit (610074-100). Refer to BCT Power Board Replacement Work Instructions (513158) for replacement details. BCT Power Board Nylon Standoff 450033-001 Rev A (December 2003) Page 1 of 2 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Stainless Steel Standoff and Screw Stainless Steel Standoff and Screw Nylon Standoff and Nylon Screw Nylon StandoffPDF Image | BCT Power Board Nylon Standoffs Model C30 MicroTurbine
