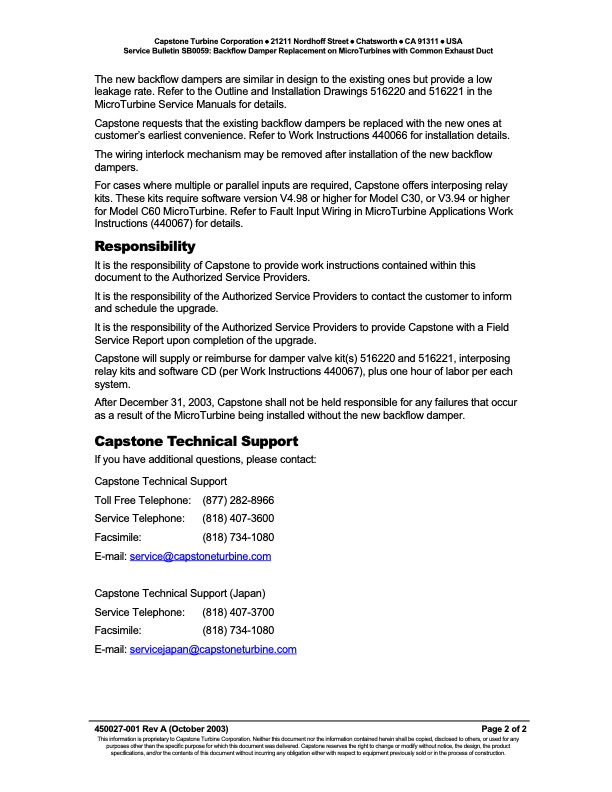

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Service Bulletin SB0059: Backflow Damper Replacement on MicroTurbines with Common Exhaust Duct The new backflow dampers are similar in design to the existing ones but provide a low leakage rate. Refer to the Outline and Installation Drawings 516220 and 516221 in the MicroTurbine Service Manuals for details. Capstone requests that the existing backflow dampers be replaced with the new ones at customer’s earliest convenience. Refer to Work Instructions 440066 for installation details. The wiring interlock mechanism may be removed after installation of the new backflow dampers. For cases where multiple or parallel inputs are required, Capstone offers interposing relay kits. These kits require software version V4.98 or higher for Model C30, or V3.94 or higher for Model C60 MicroTurbine. Refer to Fault Input Wiring in MicroTurbine Applications Work Instructions (440067) for details. Responsibility It is the responsibility of Capstone to provide work instructions contained within this document to the Authorized Service Providers. It is the responsibility of the Authorized Service Providers to contact the customer to inform and schedule the upgrade. It is the responsibility of the Authorized Service Providers to provide Capstone with a Field Service Report upon completion of the upgrade. Capstone will supply or reimburse for damper valve kit(s) 516220 and 516221, interposing relay kits and software CD (per Work Instructions 440067), plus one hour of labor per each system. After December 31, 2003, Capstone shall not be held responsible for any failures that occur as a result of the MicroTurbine being installed without the new backflow damper. Capstone Technical Support If you have additional questions, please contact: Capstone Technical Support Toll Free Telephone: Service Telephone: Facsimile: E-mail: service@capstoneturbine.com (877) 282-8966 (818) 407-3600 (818) 734-1080 Capstone Technical Support (Japan) Service Telephone: (818) 407-3700 Facsimile: (818) 734-1080 E-mail: servicejapan@capstoneturbine.com 450027-001 Rev A (October 2003) Page 2 of 2 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Backflow Damper Replacement on Multiple MicroTurbines with Common Exhaust Duct and/or Wiring Interlock
