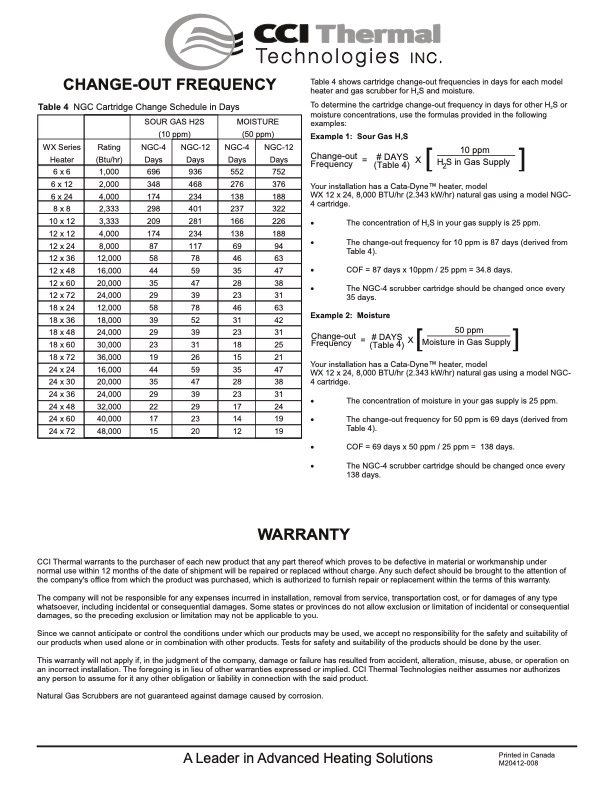

CHANGE-OUT FREQUENCY Table 4 NGC Cartridge Change Schedule in Days Table 4 shows cartridge change-out frequencies in days for each model heater and gas scrubber for H2S and moisture. To determine the cartridge change-out frequency in days for other H2S or moisture concentrations, use the formulas provided in the following examples: Example 1: Sour Gas H2S Your installation has a Cata-DyneTM heater, model WX 12 x 24, 8,000 BTU/hr (2.343 kW/hr) natural gas using a model NGC- 4 cartridge. · The concentration of H2S in your gas supply is 25 ppm. · The change-out frequency for 10 ppm is 87 days (derived from Table 4). · COF = 87 days x 10ppm / 25 ppm = 34.8 days. · The NGC-4 scrubber cartridge should be changed once every 35 days. Example 2: Moisture Your installation has a Cata-DyneTM heater, model WX 12 x 24, 8,000 BTU/hr (2.343 kW/hr) natural gas using a model NGC- 4 cartridge. · The concentration of moisture in your gas supply is 25 ppm. · The change-out frequency for 50 ppm is 69 days (derived from Table 4). · COF = 69 days x 50 ppm / 25 ppm = 138 days. · The NGC-4 scrubber cartridge should be changed once every 138 days. SOUR GAS H2S (10 ppm) MOISTURE (50 ppm) WX Series Heater Rating (Btu/hr) NGC-4 Days NGC-12 Days NGC-4 Days NGC-12 Days 6x6 1,000 696 936 552 752 6 x 12 2,000 348 468 276 376 6 x 24 4,000 174 234 138 188 8x8 2,333 298 401 237 322 10 x 12 3,333 209 281 166 226 12 x 12 4,000 174 234 138 188 12 x 24 8,000 87 117 69 94 12 x 36 12,000 58 78 46 63 12 x 48 16,000 44 59 35 47 12 x 60 20,000 35 47 28 38 12 x 72 24,000 29 39 23 31 18 x 24 12,000 58 78 46 63 18 x 36 18,000 39 52 31 42 18 x 48 24,000 29 39 23 31 18 x 60 30,000 23 31 18 25 18 x 72 36,000 19 26 15 21 24 x 24 16,000 44 59 35 47 24 x 30 20,000 35 47 28 38 24 x 36 24,000 29 39 23 31 24 x 48 32,000 22 29 17 24 24 x 60 40,000 17 23 14 19 24 x 72 48,000 15 20 12 19 Change-out = # DAYS X [ 10 ppm ] Frequency (Table 43) H2S in Gas Supply Change-out = # DAYS X [ 50 ppm ] Frequency 4 Moisture in Gas Supply (Table 3) WARRANTY CCI Thermal warrants to the purchaser of each new product that any part thereof which proves to be defective in material or workmanship under normal use within 12 months of the date of shipment will be repaired or replaced without charge. Any such defect should be brought to the attention of the company's office from which the product was purchased, which is authorized to furnish repair or replacement within the terms of this warranty. The company will not be responsible for any expenses incurred in installation, removal from service, transportation cost, or for damages of any type whatsoever, including incidental or consequential damages. Some states or provinces do not allow exclusion or limitation of incidental or consequential damages, so the preceding exclusion or limitation may not be applicable to you. Since we cannot anticipate or control the conditions under which our products may be used, we accept no responsibility for the safety and suitability of our products when used alone or in combination with other products. Tests for safety and suitability of the products should be done by the user. This warranty will not apply if, in the judgment of the company, damage or failure has resulted from accident, alteration, misuse, abuse, or operation on an incorrect installation. The foregoing is in lieu of other warranties expressed or implied. CCI Thermal Technologies neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the said product. Natural Gas Scrubbers are not guaranteed against damage caused by corrosion. A Leader in Advanced Heating Solutions Printed in Canada M20412-008PDF Image | NGS 1000 NATURAL GAS SCRUBBERS
